Grippers - Hex Head Adjustable - Carbide Tipped - Diamond Serration - Inch (CTH)

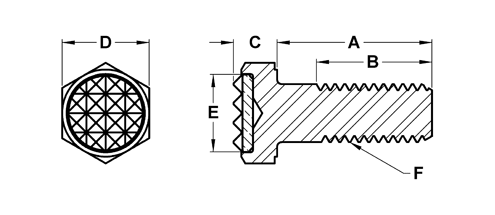

Drawing
Description
Description
The threaded body allows the user to adjust the height of the gripper. The serrated carbide tip provides positive holding and wear resistance. The body is made from a Grade 8 fastener with a black oxide finish. The serrated carbide pad is brazed onto a pocket in the head.
Gripper Technical InformationGenerating CAD viewer. Please wait...
CTH-0200
CTH Adjustable Gripper - 1/4-20 X 1/2 in - Extra Fine
No file is available for download.
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| CTH-0200 | CTH-0200 | CTH-0200 | CTH Adjustable Gripper - 1/4-20 X 1/2 in - Extra Fine | 1 | 100497 | CAD | 1/2 | 1/2 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0250 | CTH-0200 | CTH-0250 | CTH Adjustable Gripper - 1/4-20 X 1 in - Extra Fine | 1 | 100549 | CAD | 1 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTHF-0250 | CTH-0200 | CTHF-0250 | CTH Adjustable Gripper - Full Thread - 1/4-20 X 1 in - Extra Fine | 1 | 100944 | CAD | 1 | 1 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0250X1.5 | CTH-0200 | CTH-0250X1.5 | CTH Adjustable Gripper - 1/4-20 X 1-1/2 in - Extra Fine | 1 | 100559 | CAD | 1-1/2 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTHF-0250X1.5 | CTH-0200 | CTHF-0250X1.5 | CTH Adjustable Gripper - Full Thread - 1/4-20 X 1-1/2 in - Extra Fine | 1 | 100953 | CAD | 1-1/2 | 1-1/2 | 13/64 | 7/16 | 5/16 | 1/4-20 | EF | |
| CTH-0280 | CTH-0200 | CTH-0280 | CTH Adjustable Gripper - 1/4-28 X 1/2 in - Extra Fine | 1 | 100563 | CAD | 1/2 | 1/2 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0281 | CTH-0200 | CTH-0281 | CTH Adjustable Gripper - 1/4-28 X 1 in - Extra Fine | 1 | 100568 | CAD | 1 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTHF-0281 | CTH-0200 | CTHF-0281 | CTH Adjustable Gripper - Full Thread - 1/4-28 X 1 in - Extra Fine | 1 | 100967 | CAD | 1 | 1 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0281X1.5 | CTH-0200 | CTH-0281X1.5 | CTH Adjustable Gripper - 1/4-28 X 1-1/2 in - Extra Fine | 1 | 100575 | CAD | 1-1/2 | 7/8 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTHF-0281X1.5 | CTH-0200 | CTHF-0281X1.5 | CTH Adjustable Gripper - Full Thread - 1/4-28 X 1-1/2 in - Extra Fine | 1 | 100982 | CAD | 1-1/2 | 1-1/2 | 13/64 | 7/16 | 5/16 | 1/4-28 | EF | |
| CTH-0310 | CTH-0200 | CTH-0310 | CTH Adjustable Gripper - 5/16-18 X 1/2 in - Fine | 1 | 100582 | CAD | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0310-EF | CTH-0200 | CTH-0310-EF | CTH Adjustable Gripper - 5/16-18 X 1/2 in - Extra Fine | 1 | 100584 | CAD | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0312 | CTH-0200 | CTH-0312 | CTH Adjustable Gripper - 5/16-18 X 1 in - Fine | 1 | 100595 | CAD | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0312-EF | CTH-0200 | CTH-0312-EF | CTH Adjustable Gripper - 5/16-18 X 1 in - Extra Fine | 1 | 100599 | CAD | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0312X1.5 | CTH-0200 | CTH-0312X1.5 | CTH Adjustable Gripper - 5/16-18 X 1-1/2 in - Fine | 1 | 100603 | CAD | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTHF-0312X1.5 | CTH-0200 | CTHF-0312X1.5 | CTH Adjustable Gripper - Full Thread - 5/16-18 X 1-1/2 in - Fine | 1 | 100984 | CAD | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | Fine | |
| CTH-0312X1.5-EF | CTH-0200 | CTH-0312X1.5-EF | CTH Adjustable Gripper - 5/16-18 X 1-1/2 in - Extra Fine | 1 | 100612 | CAD | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTHF-0312X1.5-EF | CTH-0200 | CTHF-0312X1.5-EF | CTH Adjustable Gripper - Full Thread - 5/16-18 X 1-1/2 in - Extra Fine | 1 | 100986 | CAD | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-18 | EF | |
| CTH-0320 | CTH-0200 | CTH-0320 | CTH Adjustable Gripper - 5/16-24 X 1/2 in - Fine | 1 | 100613 | CAD | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0320-EF | CTH-0200 | CTH-0320-EF | CTH Adjustable Gripper - 5/16-24 X 1/2 in - Extra Fine | 1 | 100614 | CAD | 1/2 | 1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0321 | CTH-0200 | CTH-0321 | CTH Adjustable Gripper - 5/16-24 X 1 in - Fine | 1 | 100625 | CAD | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0321-EF | CTH-0200 | CTH-0321-EF | CTH Adjustable Gripper - 5/16-24 X 1 in - Extra Fine | 1 | 100640 | CAD | 1 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0321X1.5 | CTH-0200 | CTH-0321X1.5 | CTH Adjustable Gripper - 5/16-24 X 1-1/2 in - Fine | 1 | 100654 | CAD | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTHF-0321X1.5 | CTH-0200 | CTHF-0321X1.5 | CTH Adjustable Gripper - Full Thread - 5/16-24 X 1-1/2 in - Fine | 1 | 101005 | CAD | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | Fine | |
| CTH-0321X1.5-EF | CTH-0200 | CTH-0321X1.5-EF | CTH Adjustable Gripper - 5/16 X 1-1/2 in - Extra Fine | 1 | 100662 | CAD | 1-1/2 | 1 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTHF-0321X1.5-EF | CTH-0200 | CTHF-0321X1.5-EF | CTH Adjustable Gripper - Full Thread - 5/16-24 X 1-1/2 in - Extra Fine | 1 | 101009 | CAD | 1-1/2 | 1-1/2 | 1/4 | 1/2 | 3/8 | 5/16-24 | EF | |
| CTH-0370 | CTH-0200 | CTH-0370 | CTH Adjustable Gripper - 3/8-16 X 1/2 in - Fine | 1 | 100666 | CAD | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0370-EF | CTH-0200 | CTH-0370-EF | CTH Adjustable Gripper - 3/8-16 X 1/2 in - Extra Fine | 1 | 100668 | CAD | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0375 | CTH-0200 | CTH-0375 | CTH Adjustable Gripper - 3/8-16 X 1 in - Fine | 1 | 100672 | CAD | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0375-EF | CTH-0200 | CTH-0375-EF | CTH Adjustable Gripper - 3/8-16 X 1 in - Extra Fine | 1 | 100687 | CAD | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0375X1.5 | CTH-0200 | CTH-0375X1.5 | CTH Adjustable Gripper - 3/8-16 X 1-1/2 in - Fine | 1 | 100703 | CAD | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTHF-0375X1.5 | CTH-0200 | CTHF-0375X1.5 | CTH Adjustable Gripper - Full Thread - 3/8-16 X 1-1/2 in - Fine | 1 | 101016 | CAD | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | Fine | |
| CTH-0375X1.5-EF | CTH-0200 | CTH-0375X1.5-EF | CTH Adjustable Gripper - 3/8-16 X 1-1/2 in - Extra Fine | 1 | 100710 | CAD | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTHF-0375X1.5-EF | CTH-0200 | CTHF-0375X1.5-EF | CTH Adjustable Gripper - Full Thread - 3/8-16 X 1-1/2 in - Extra Fine | 1 | 101023 | CAD | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-16 | EF | |
| CTH-0230 | CTH-0200 | CTH-0230 | CTH Adjustable Gripper - 3/8-24 X 1/2 in - Fine | 1 | 100501 | CAD | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0230-EF | CTH-0200 | CTH-0230-EF | CTH Adjustable Gripper - 3/8-24 X 1/2 in - Extra Fine | 1 | 100505 | CAD | 1/2 | 1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0231 | CTH-0200 | CTH-0231 | CTH Adjustable Gripper - 3/8-24 X 1 in - Fine | 1 | 100509 | CAD | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0231-EF | CTH-0200 | CTH-0231-EF | CTH Adjustable Gripper - 3/8-24 X 1 in - Extra Fine | 1 | 100511 | CAD | 1 | 1 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0231X1.5 | CTH-0200 | CTH-0231X1.5 | CTH Adjustable Gripper - 3/8-24 X 1-1/2 in - Fine | 1 | 100524 | CAD | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTHF-0231X1.5 | CTH-0200 | CTHF-0231X1.5 | CTH Adjustable Gripper - Full Thread - 3/8-24 X 1-1/2 in - Fine | 1 | 100902 | CAD | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | Fine | |
| CTH-0231X1.5-EF | CTH-0200 | CTH-0231X1.5-EF | CTH Adjustable Gripper - 3/8-24 X 1-1/2 in - Extra Fine | 1 | 100526 | CAD | 1-1/2 | 1-1/8 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTHF-0231X1.5-EF | CTH-0200 | CTHF-0231X1.5-EF | CTH Adjustable Gripper - Full Thread - 3/8-24 X 1-1/2 in - Extra Fine | 1 | 100922 | CAD | 1-1/2 | 1-1/2 | 9/32 | 9/16 | 1/2 | 3/8-24 | EF | |
| CTH-0510 | CTH-0200 | CTH-0510 | CTH Adjustable Gripper - 1/2-13 X 1 in - Fine | 1 | 100758 | CAD | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-13 | Fine | |
| CTH-0510-EF | CTH-0200 | CTH-0510-EF | CTH Adjustable Gripper - 1/2-13 X 1 in - Extra Fine | 1 | 100775 | CAD | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-13 | EF | |
| CTH-0515 | CTH-0200 | CTH-0515 | CTH Adjustable Gripper - 1/2-13 X 1-1/2 in - Fine | 1 | 100786 | CAD | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-13 | Fine | |
| CTH-0515-EF | CTH-0200 | CTH-0515-EF | CTH Adjustable Gripper - 1/2-13 X 1-1/2 in - Extra Fine | 1 | 100798 | CAD | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-13 | EF | |
| CTH-0240 | CTH-0200 | CTH-0240 | CTH Adjustable Gripper - 1/2-20 X 1 in - Fine | 1 | 100528 | CAD | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-20 | Fine | |
| CTH-0240-EF | CTH-0200 | CTH-0240-EF | CTH Adjustable Gripper - 1/2-20 X 1 in - Extra Fine | 1 | 100532 | CAD | 1 | 1 | 23/64 | 3/4 | 5/8 | 1/2-20 | EF | |
| CTH-0500 | CTH-0200 | CTH-0500 | CTH Adjustable Gripper - 1/2-20 X 1-1/2 in - Fine | 1 | 100723 | CAD | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-20 | Fine | |
| CTH-0500-EF | CTH-0200 | CTH-0500-EF | CTH Adjustable Gripper - 1/2-20 X 1-1/2 in - Extra Fine | 1 | 100751 | CAD | 1-1/2 | 1-1/2 | 23/64 | 3/4 | 5/8 | 1/2-20 | EF | |
| CTH-0625 | CTH-0200 | CTH-0625 | CTH Adjustable Gripper - 5/8-11 X 1 in - Fine | 1 | 100846 | CAD | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTH-0625-EF | CTH-0200 | CTH-0625-EF | CTH Adjustable Gripper - 5/8-11 X 1 in - Extra Fine | 1 | 100850 | CAD | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTH-0625X2 | CTH-0200 | CTH-0625X2 | CTH Adjustable Gripper - 5/8-11 X 2 in - Fine | 1 | 100865 | CAD | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTHF-0625X2 | CTH-0200 | CTHF-0625X2 | CTH Adjustable Gripper - Full Thread - 5/8-11 X 2 in - Fine | 1 | 101045 | CAD | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-11 | Fine | |
| CTH-0625X2-EF | CTH-0200 | CTH-0625X2-EF | CTH Adjustable Gripper - 5/8-11 X 2 in - Extra Fine | 1 | 100875 | CAD | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTHF-0625X2-EF | CTH-0200 | CTHF-0625X2-EF | CTH Adjustable Gripper - Full Thread - 5/8-11 X 2 in - Extra Fine | 1 | 101059 | CAD | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-11 | EF | |
| CTH-0620 | CTH-0200 | CTH-0620 | CTH Adjustable Gripper - 5/8-18 X 1 in - Fine | 1 | 100800 | CAD | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTH-0620-EF | CTH-0200 | CTH-0620-EF | CTH Adjustable Gripper - 5/8-18 X 1 in - Extra Fine | 1 | 100826 | CAD | 1 | 1 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTH-0620X2 | CTH-0200 | CTH-0620X2 | CTH Adjustable Gripper - 5/8-18 X 2 in - Fine | 1 | 100835 | CAD | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTHF-0620X2 | CTH-0200 | CTHF-0620X2 | CTH Adjustable Gripper - Full Thread - 5/8-18 X 2 in - Fine | 1 | 101035 | CAD | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-18 | Fine | |
| CTH-0620X2-EF | CTH-0200 | CTH-0620X2-EF | CTH Adjustable Gripper - 5/8-18 X 2 in - Extra Fine | 1 | 100845 | CAD | 2 | 1-1/2 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTHF-0620X2-EF | CTH-0200 | CTHF-0620X2-EF | CTH Adjustable Gripper - Full Thread - 5/8-18 X 2 in - Extra Fine | 1 | 101037 | CAD | 2 | 2 | 7/16 | 15/16 | 3/4 | 5/8-18 | EF | |
| CTH-0755-EF | CTH-0200 | CTH-0755-EF | CTH Adjustable Gripper - 3/4-10 X 1 in - Extra Fine | 1 | 100896 | CAD | 1 | 1 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF | |
| CTH-0755X2.5-EF | CTH-0200 | CTH-0755X2.5-EF | CTH Adjustable Gripper - 3/4-10 X 2-1/2 in - Extra Fine | 1 | 100899 | CAD | 2-1/2 | 1-3/4 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF | |
| CTHF-0755X2.5-EF | CTH-0200 | CTHF-0755X2.5-EF | CTH Adjustable Gripper - Full Thread - 3/4-10 X 2-1/2 in - Extra Fine | 1 | 101068 | CAD | 2-1/2 | 2-1/2 | 1/2 | 1-1/8 | 1 | 3/4-10 | EF | |
| CTH-0750-EF | CTH-0200 | CTH-0750-EF | CTH Adjustable Gripper - 3/4-16 X 1 in - Extra Fine | 1 | 100879 | CAD | 1 | 1 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF | |
| CTH-0750X2.5-EF | CTH-0200 | CTH-0750X2.5-EF | CTH Adjustable Gripper - 3/4-16 X 2-1/2 in - Extra Fine | 1 | 100893 | CAD | 2-1/2 | 1-3/4 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF | |
| CTHF-0750X2.5-EF | CTH-0200 | CTHF-0750X2.5-EF | CTH Adjustable Gripper - Full Thread - 3/4-16 X 2-1/2 in - Extra Fine | 1 | 101064 | CAD | 2-1/2 | 2-1/2 | 1/2 | 1-1/8 | 1 | 3/4-16 | EF |
