Base Design Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MBBU-FC-DS)

Base Design Swivots® Gripper Assembly - Diamond Surface Cone - Metric (MBBU-FC-DS)

Description

Cylindrical body allows for installation in tight areas. The housing is tapped for backside fastening. The replaceable ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The abrasive surface is permanently fused to a 300 series stainless steel pad. The surface texture is comparable to a 100 grit abrasive. They are ideal for holding smooth or slippery applications with a minimum of clamping pressure. Individual diamond particles transfer holding pressure to a very small and well distributed area, providing superior holding with minimal surface marking. The diamond surface provides unparalleled wear resistance. Replacement balls and O-rings can be ordered separately.

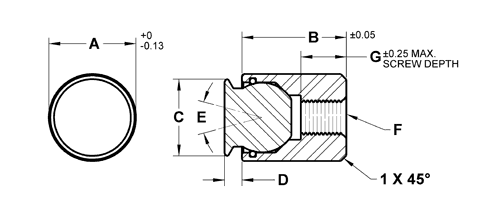

MBBU-1012-FC-DS

Base Design Swivot - 10 mm Dia X 10.5 mm - Diamond Surface
