Full Threaded Swivots® Gripper Assembly - Flat Tool Steel Ball - Inch (TBU-F)

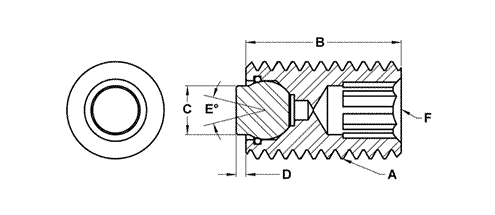

Drawing
Description
Media

Description

The replaceable flat ball swivels to allow for self-alignment on uneven surfaces. A Viton O-ring holds the ball in place while keeping contaminants out and providing smooth ball movement. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The replaceable ball is made from M-2 high speed steel heat treated to Rc 60/62. Replacement balls and O-rings can be ordered separately.

Gripper Technical Information

TBU-0370-F

Threaded Design Swivot - 3/8-16 X 1/2 - Flat

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
TBU-0370-F	TBU-0230-F	TBU-0370-F	Threaded Design Swivot - 3/8-16 X 1/2 - Flat	1	103395	CAD	3/8-16	1/2	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0375-F	TBU-0230-F	TBU-0375-F	Threaded Design Swivot - 3/8-16 X 1 - Flat	1	101915	CAD	3/8-16	1	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0375X2-F	TBU-0230-F	TBU-0375X2-F	Threaded Design Swivot - 3/8-16 X 2 - Flat	1	102007	CAD	3/8-16	2	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0375X3-F	TBU-0230-F	TBU-0375X3-F	Threaded Design Swivot - 3/8-16 X 3 - Flat	1	102076	CAD	3/8-16	3	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0230-F	TBU-0230-F	TBU-0230-F	Threaded Design Swivot - 3/8-24 X 1/2 - Flat	1	103178	CAD	3/8-24	1/2	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0231-F	TBU-0230-F	TBU-0231-F	Threaded Design Swivot - 3/8-24 X 1 - Flat	1	103237	CAD	3/8-24	1	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0231X2-F	TBU-0230-F	TBU-0231X2-F	Threaded Design Swivot - 3/8-24 X 2 - Flat	1	103292	CAD	3/8-24	2	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0231X3-F	TBU-0230-F	TBU-0231X3-F	Threaded Design Swivot - 3/8-24 X 3 - Flat	1	103337	CAD	3/8-24	3	5/32	1/16	28	3/16	3/16	BUB-187-F	1,763
TBU-0513-F	TBU-0230-F	TBU-0513-F	Threaded Design Swivot - 1/2-13 X 3/4 - Flat	1	102848	CAD	1/2-13	3/4	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0513-F-T	TBU-0230-F	TBU-0513-F-T	Threaded Design Swivot - 1/2-13 X 3/4 - Flat - Tall	1	102859	CAD	1/2-13	3/4	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0510-F	TBU-0230-F	TBU-0510-F	Threaded Design Swivot - 1/2-13 X 1 - Flat	1	102563	CAD	1/2-13	1	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0510-F-T	TBU-0230-F	TBU-0510-F-T	Threaded Design Swivot - 1/2-13 X 1 - Flat - Tall	1	102570	CAD	1/2-13	1	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0510X2-F	TBU-0230-F	TBU-0510X2-F	Threaded Design Swivot - 1/2-13 X 2 - Flat	1	102658	CAD	1/2-13	2	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0510X2-F-T	TBU-0230-F	TBU-0510X2-F-T	Threaded Design Swivot - 1/2-13 X 2 - Flat - Tall	1	102667	CAD	1/2-13	2	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0510X3-F	TBU-0230-F	TBU-0510X3-F	Threaded Design Swivot - 1/2-13 X 3 - Flat	1	102747	CAD	1/2-13	3	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0510X3-F-T	TBU-0230-F	TBU-0510X3-F-T	Threaded Design Swivot - 1/2-13 X 3 - Flat - Tall	1	102753	CAD	1/2-13	3	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0503-F	TBU-0230-F	TBU-0503-F	Threaded Design Swivot - 1/2-20 X 3/4 - Flat	1	102477	CAD	1/2-20	3/4	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0503-F-T	TBU-0230-F	TBU-0503-F-T	Threaded Design Swivot - 1/2-20 X 3/4 - Flat - Tall	1	102486	CAD	1/2-20	3/4	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0500-F	TBU-0230-F	TBU-0500-F	Threaded Design Swivot - 1/2-20 X 1 - Flat	1	102175	CAD	1/2-20	1	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0500-F-T	TBU-0230-F	TBU-0500-F-T	Threaded Design Swivot - 1/2-20 X 1 - Flat - Tall	1	102186	CAD	1/2-20	1	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0500X2-F	TBU-0230-F	TBU-0500X2-F	Threaded Design Swivot - 1/2-20 X 2 - Flat	1	102275	CAD	1/2-20	2	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0500X2-F-T	TBU-0230-F	TBU-0500X2-F-T	Threaded Design Swivot - 1/2-20 X 2 - Flat - Tall	1	102278	CAD	1/2-20	2	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0500X3-F	TBU-0230-F	TBU-0500X3-F	Threaded Design Swivot - 1/2-20 X 3 - Flat	1	102352	CAD	1/2-20	3	1/4	1/16	28	1/4	9/32	BUB-200-F	4,527
TBU-0500X3-F-T	TBU-0230-F	TBU-0500X3-F-T	Threaded Design Swivot - 1/2-20 X 3 - Flat - Tall	1	102356	CAD	1/2-20	3	1/4	1/8	28	1/4	9/32	BUB-200-F-T	4,527
TBU-0625-F	TBU-0230-F	TBU-0625-F	Threaded Design Swivot - 5/8-11 X 1 - Flat	1	103242	CAD	5/8-11	1	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0625-F-T	TBU-0230-F	TBU-0625-F-T	Threaded Design Swivot - 5/8-11 X 1 - Flat - Tall	1	103250	CAD	5/8-11	1	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0625X2-F	TBU-0230-F	TBU-0625X2-F	Threaded Design Swivot - 5/8-11 X 2 - Flat	1	103363	CAD	5/8-11	2	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0625X2-F-T	TBU-0230-F	TBU-0625X2-F-T	Threaded Design Swivot - 5/8-11 X 2 - Flat - Tall	1	103374	CAD	5/8-11	2	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0625X3-F	TBU-0230-F	TBU-0625X3-F	Threaded Design Swivot - 5/8-11 X 3 - Flat	1	101927	CAD	5/8-11	3	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0625X3-F-T	TBU-0230-F	TBU-0625X3-F-T	Threaded Design Swivot - 5/8-11 X 3 - Flat - Tall	1	101937	CAD	5/8-11	3	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0620-F	TBU-0230-F	TBU-0620-F	Threaded Design Swivot - 5/8-18 X 1 - Flat	1	102926	CAD	5/8-18	1	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0620-F-T	TBU-0230-F	TBU-0620-F-T	Threaded Design Swivot - 5/8-18 X 1 - Flat - Tall	1	102928	CAD	5/8-18	1	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0620X2-F	TBU-0230-F	TBU-0620X2-F	Threaded Design Swivot - 5/8-18 X 2 - Flat	1	103000	CAD	5/8-18	2	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0620X2-F-T	TBU-0230-F	TBU-0620X2-F-T	Threaded Design Swivot - 5/8-18 X 2 - Flat - Tall	1	103005	CAD	5/8-18	2	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0620X3-F	TBU-0230-F	TBU-0620X3-F	Threaded Design Swivot - 5/8-18 X 3 - Flat	1	103129	CAD	5/8-18	3	5/16	1/16	28	5/16	3/8	BUB-300-F	6,131
TBU-0620X3-F-T	TBU-0230-F	TBU-0620X3-F-T	Threaded Design Swivot - 5/8-18 X 3 - Flat - Tall	1	103130	CAD	5/8-18	3	5/16	1/8	28	5/16	3/8	BUB-300-F-T	6,131
TBU-0755-F	TBU-0230-F	TBU-0755-F	Threaded Design Swivot - 3/4-10 X 1 - Flat	1	102373	CAD	3/4-10	1	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0755-F-T	TBU-0230-F	TBU-0755-F-T	Threaded Design Swivot - 3/4-10 X 1 - Flat - Tall	1	102390	CAD	3/4-10	1	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-0755X2-F	TBU-0230-F	TBU-0755X2-F	Threaded Design Swivot - 3/4-10 X 2 - Flat	1	102492	CAD	3/4-10	2	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0755X2-F-T	TBU-0230-F	TBU-0755X2-F-T	Threaded Design Swivot - 3/4-10 X 2 - Flat - Tall	1	102500	CAD	3/4-10	2	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-0755X3-F	TBU-0230-F	TBU-0755X3-F	Threaded Design Swivot - 3/4-10 X 3 - Flat	1	102612	CAD	3/4-10	3	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0755X3-F-T	TBU-0230-F	TBU-0755X3-F-T	Threaded Design Swivot - 3/4-10 X 3 - Flat - Tall	1	102620	CAD	3/4-10	3	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-0750-F	TBU-0230-F	TBU-0750-F	Threaded Design Swivot - 3/4-16 X 1 - Flat	1	102022	CAD	3/4-16	1	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0750-F-T	TBU-0230-F	TBU-0750-F-T	Threaded Design Swivot - 3/4-16 X 1 - Flat - Tall	1	102044	CAD	3/4-16	1	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-0750X2-F	TBU-0230-F	TBU-0750X2-F	Threaded Design Swivot - 3/4-16 X 2 - Flat	1	102131	CAD	3/4-16	2	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0750X2-F-T	TBU-0230-F	TBU-0750X2-F-T	Threaded Design Swivot - 3/4-16 X 2 - Flat - Tall	1	102136	CAD	3/4-16	2	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-0750X3-F	TBU-0230-F	TBU-0750X3-F	Threaded Design Swivot - 3/4-16 X 3 - Flat	1	102254	CAD	3/4-16	3	3/8	1/8	40	3/8	1/2	BUB-500-F	8,150
TBU-0750X3-F-T	TBU-0230-F	TBU-0750X3-F-T	Threaded Design Swivot - 3/4-16 X 3 - Flat - Tall	1	102265	CAD	3/4-16	3	3/8	1/4	40	3/8	1/2	BUB-500-F-T	8,150
TBU-1108-F	TBU-0230-F	TBU-1108-F	Threaded Design Swivot - 1-8 X 1 - Flat	1	102733	CAD	1-8	1	1/2	1/8	40	3/8	5/8	BUB-600-F	14,757
TBU-1108-F-T	TBU-0230-F	TBU-1108-F-T	Threaded Design Swivot - 1-8 X 1 - Flat - Tall	1	102744	CAD	1-8	1	1/2	1/4	40	3/8	5/8	BUB-600-F-T	14,757
TBU-1108X2-F	TBU-0230-F	TBU-1108X2-F	Threaded Design Swivot - 1-8 X 2 - Flat	1	102876	CAD	1-8	2	1/2	1/8	40	3/8	5/8	BUB-600-F	14,757
TBU-1108X2-F-T	TBU-0230-F	TBU-1108X2-F-T	Threaded Design Swivot - 1-8 X 2 - Flat - Tall	1	102890	CAD	1-8	2	1/2	1/4	40	3/8	5/8	BUB-600-F-T	14,757
TBU-1108X3-F	TBU-0230-F	TBU-1108X3-F	Threaded Design Swivot - 1-8 X 3 - Flat	1	103007	CAD	1-8	3	1/2	1/8	40	3/8	5/8	BUB-600-F	14,757
TBU-1108X3-F-T	TBU-0230-F	TBU-1108X3-F-T	Threaded Design Swivot - 1-8 X 3 - Flat - Tall	1	103012	CAD	1-8	3	1/2	1/4	40	3/8	5/8	BUB-600-F-T	14,757
TBU-1114-F	TBU-0230-F	TBU-1114-F	Threaded Design Swivot - 1-14 X 1 - Flat	1	103175	CAD	1-14	1	5/8	1/8	34	3/8	3/4	BUB-700-F	17,210
TBU-1114-F-T	TBU-0230-F	TBU-1114-F-T	Threaded Design Swivot - 1-14 X 1 - Flat - Tall	1	103180	CAD	1-14	1	5/8	1/4	34	3/8	3/4	BUB-700-F-T	17,210
TBU-1114X2-F	TBU-0230-F	TBU-1114X2-F	Threaded Design Swivot - 1-14 X 2 - Flat	1	103269	CAD	1-14	2	5/8	1/8	34	3/8	3/4	BUB-700-F	17,210
TBU-1114X2-F-T	TBU-0230-F	TBU-1114X2-F-T	Threaded Design Swivot - 1-14 X 2 - Flat - Tall	1	103278	CAD	1-14	2	5/8	1/4	34	3/8	3/4	BUB-700-F-T	17,210
TBU-1114X3-F	TBU-0230-F	TBU-1114X3-F	Threaded Design Swivot - 1-14 X 3 - Flat	1	103419	CAD	1-14	3	5/8	1/8	34	3/8	3/4	BUB-700-F	17,210
TBU-1114X3-F-T	TBU-0230-F	TBU-1114X3-F-T	Threaded Design Swivot - 1-14 X 3 - Flat - Tall	1	103425	CAD	1-14	3	5/8	1/4	34	3/8	3/4	BUB-700-F-T	17,210
