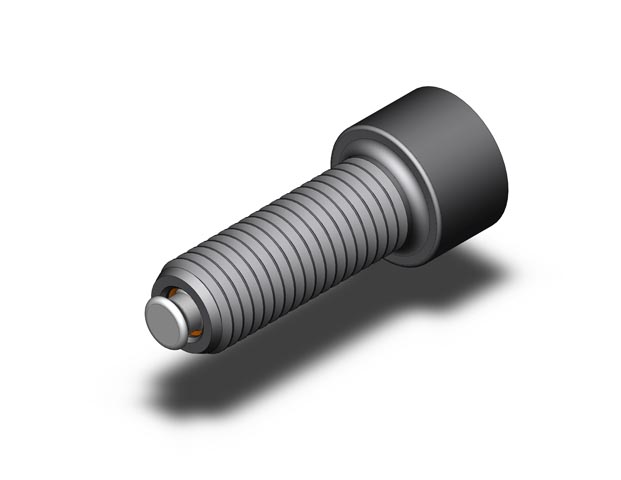

Headed Thrust Screw - Flat Cone Delrin - 1/4-28 X 3/4 in

Part Number: TSH-0280-DC
Thread - External: 1/4-28
Length - Shank: 3/4
Length - Thread: 3/4
Diameter - Contact Surface: 9/64
Degree Swivel: 30
Diameter - Ball: 1/8
Hex - Internal - Flat: 3/16
Ball Only Part No.: BUB-125-DC

Part:TSH-0280-DC

TSH-0280-DC
