Bumpers - Round - Hex Shoulder - Steel Core - Tapped - Inch (RBH)

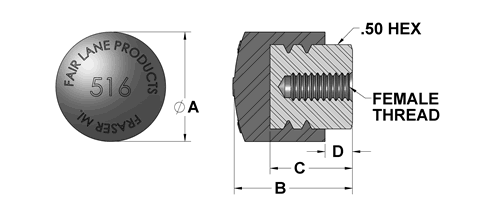

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Urethane offers highest resistance, strength and load bearing. High elongation hardness. Resistant to ozone and oxygen.

Bumper Material Information

RBH-516-024-60UR

Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 10-24 X 7/16 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
RBH-516-024-60UR		RBH-516-024-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 10-24 X 7/16 in	1	141938	CAD	3/4	13/16	9/16	3/16	60	#10-24	7/16	1/2	Urethane
RBH-516-024UR	RBH-516-024UR	RBH-516-024UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-24 X 7/16 in	1	111274	CAD	3/4	13/16	9/16	3/16	80	#10-24	7/16	1/2	Urethane
RBH-516-024-95UR		RBH-516-024-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 10-24 X 7/16 in	1	141939	CAD	3/4	13/16	9/16	3/16	95	#10-24	7/16	1/2	Urethane
RBH-516-032-60UR		RBH-516-032-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 10-32 X 7/16 in	1	141940	CAD	3/4	13/16	9/16	3/16	60	#10-32	7/16	1/2	Urethane
RBH-516-032UR	RBH-516-024UR	RBH-516-032UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 10-32 X 7/16 in	1	111277	CAD	3/4	13/16	9/16	3/16	80	#10-32	7/16	1/2	Urethane
RBH-516-032-95UR		RBH-516-032-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 10-32 X 7/16 in	1	141941	CAD	3/4	13/16	9/16	3/16	95	#10-32	7/16	1/2	Urethane
RBH-516-120-60UR		RBH-516-120-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 1/4-20 X 7/16 in	1	141942	CAD	3/4	13/16	9/16	3/16	60	1/4-20	7/16	1/2	Urethane
RBH-516-120UR	RBH-516-024UR	RBH-516-120UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-20 X 7/16 in	1	111285	CAD	3/4	13/16	9/16	3/16	80	1/4-20	7/16	1/2	Urethane
RBH-516-120-95UR		RBH-516-120-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 1/4-20 X 7/16 in	1	141943	CAD	3/4	13/16	9/16	3/16	95	1/4-20	7/16	1/2	Urethane
RBH-516-128-60UR		RBH-516-128-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 1/4-28 X 7/16 in	1	141944	CAD	3/4	13/16	9/16	3/16	60	1/4-28	7/16	1/2	Urethane
RBH-516-128UR	RBH-516-024UR	RBH-516-128UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 1/4-28 X 7/16 in	1	111293	CAD	3/4	13/16	9/16	3/16	80	1/4-28	7/16	1/2	Urethane
RBH-516-128-95UR		RBH-516-128-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 1/4-28 X 7/16 in	1	141945	CAD	3/4	13/16	9/16	3/16	95	1/4-28	7/16	1/2	Urethane
RBH-516-518-60UR		RBH-516-518-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 5/16-18 X 1/4 in	1	141946	CAD	3/4	13/16	9/16	3/16	60	5/16-18	7/16	1/2	Urethane
RBH-516-518UR	RBH-516-024UR	RBH-516-518UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-18 X 7/16 in	1	111305	CAD	3/4	13/16	9/16	3/16	80	5/16-18	7/16	1/2	Urethane
RBH-516-518-95UR		RBH-516-518-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 5/16-18 X 1/4 in	1	141947	CAD	3/4	13/16	9/16	3/16	95	5/16-18	7/16	1/2	Urethane
RBH-516-524-60UR		RBH-516-524-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - 5/16-24 X 7/16 in	1	141948	CAD	3/4	13/16	9/16	3/16	60	5/16-24	7/16	1/2	Urethane
RBH-516-524UR	RBH-516-024UR	RBH-516-524UR	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - 5/16-24 X 7/16 in	1	111307	CAD	3/4	13/16	9/16	3/16	80	5/16-24	7/16	1/2	Urethane
RBH-516-524-95UR		RBH-516-524-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - 5/16-24 X 7/16 in	1	141949	CAD	3/4	13/16	9/16	3/16	95	5/16-24	7/16	1/2	Urethane
