Bumpers - Round - Hex Shoulder - Steel Core - Male Thread - Metric (MRB)

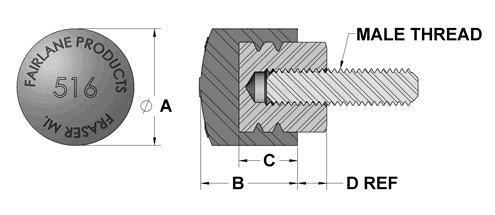

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core with hex shoulder. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness. Resistant to ozone and oxygen.

Bumper Material Information

MRB-5166X15-40

Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - M6 x 1.00 x 15mm

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
MRB-5166X15-40		MRB-5166X15-40	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - M6 x 1.00 x 15mm	1	141976	CAD	19	16	9	3.2	40	M6x1.0	15	Neoprene	Black
MRB-5166X15-60UR		MRB-5166X15-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - M6 x 1.00 x 15mm	1	141977	CAD	19	16	9	3.2	60	M6x1.0	15	Urethane	Blue
MRB-5166X15	MRB-5166X15	MRB-5166X15	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - M6 x 1.00 x 15mm	1	111026	CAD	19	16	9	3.2	70	M6x1.0	15	Neoprene	Black
MRB-5166URX15	MRB-5166X15	MRB-5166URX15	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - M6 x 1.00 x 15mm	1	111006	CAD	19	16	9	3.2	80	M6x1.0	15	Urethane	Red
MRB-5166X15-95UR		MRB-5166X15-95UR	Round Bumper w/ Hex Shoulder - 95 Dur Urethane - M6 x 1.00 x 15mm	1	141978	CAD	19	16	9	3.2	95	M6x1.0	15	Urethane	Orange
MRB-5166X30-40		MRB-5166X30-40	Round Bumper w/ Hex Shoulder - 40 Dur Neoprene - M8 x 1.25 x 30mm	1	141982	CAD	19	16	9	4.0	40	M6x1.0	30	Neoprene	Black
MRB-5166X30-60UR		MRB-5166X30-60UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - M8 x 1.25 x 30mm	1	141983	CAD	19	16	9	4.0	60	M6x1.0	30	Urethane	Blue
MRB-5166X30	MRB-5166X15	MRB-5166X30	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - M6 x 1.00 x 30mm	1	111047	CAD	19	16	9	3.2	70	M6x1.0	30	Neoprene	Black
MRB-5166URX30	MRB-5166X15	MRB-5166URX30	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - M6 x 1.00 x 30mm	1	111016	CAD	19	16	9	3.2	80	M6x1.0	30	Urethane	Red
MRB-5166X30-95UR		MRB-5166X30-95UR	Round Bumper w/ Hex Shoulder - 60 Dur Urethane - M8 x 1.25 x 30mm	1	141984	CAD	19	16	9	4.0	95	M6x1.0	30	Urethane	Orange
MRB-5168X15-40		MRB-5168X15-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M8X1.25 X 15 mm	1	142030	CAD	19	16	9	3.2	40	M8x1.25	15	Neoprene	Black
MRB-5168X15-60UR		MRB-5168X15-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M8X1.25 X 15 mm	1	142031	CAD	19	16	9	3.2	60	M8x1.25	15	Urethane	Blue
MRB-5168X15	MRB-5166X15	MRB-5168X15	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - M8 x 1.25 x 15mm	1	111083	CAD	19	16	9	4.0	70	M8x1.25	15	Neoprene	Black
MRB-5168URX15	MRB-5166X15	MRB-5168URX15	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - M8 x 1.25 x 15mm	1	111052	CAD	19	16	9	4.0	80	M8x1.25	15	Urethane	Red
MRB-5168X15-95UR		MRB-5168X15-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M8X1.25 X 15 mm	1	142032	CAD	19	16	9	3.2	95	M8x1.25	15	Urethane	Orange
MRB-5168X30-40		MRB-5168X30-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M8X1.25 X 30 mm	1	142036	CAD	19	16	9	4.0	40	M8x1.25	30	Neoprene	Black
MRB-5168X30-60UR		MRB-5168X30-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M8X1.25 X 30 mm	1	142037	CAD	19	16	9	4.0	60	M8x1.25	30	Urethane	Blue
MRB-5168X30	MRB-5166X15	MRB-5168X30	Round Bumper w/ Hex Shoulder - 70 Dur Neoprene - M8 x 1.25 x 30mm	1	111084	CAD	19	16	9	4.0	70	M8x1.25	30	Neoprene	Black
MRB-5168URX30	MRB-5166X15	MRB-5168URX30	Round Bumper w/ Hex Shoulder - 80 Dur Urethane - M8 x 1.25 x 30mm	1	111072	CAD	19	16	9	4.0	80	M8x1.25	30	Urethane	Red
MRB-5168X30-95UR		MRB-5168X30-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M8X1.25 X 30 mm	1	142038	CAD	19	16	9	4.0	95	M8x1.25	30	Urethane	Orange
