Bumpers - Round - Steel Core - Male Thread - Inch (RB)

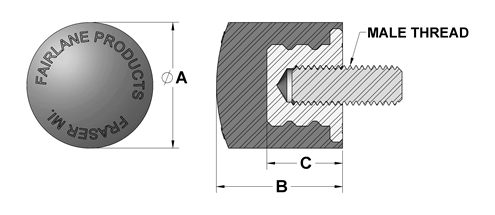

Drawing
Description
Description
Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen. Nitrile is chemical resistant and non-marring.
Bumper Material InformationGenerating CAD viewer. Please wait...
RB-3WM-10
Round Bumper - 40 Dur Nitrile - 3/8-16 X 5/8 in
No file is available for download.
| Part Number | Model Name | SKU | Description | Brand | Product ID | CAD Model Link | Price Link | 0 | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| RB-3WM-10 | RB-3M-10 | RB-3WM-10 | Round Bumper - 40 Dur Nitrile - 3/8-16 X 5/8 in | 1 | 111348 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Nitrile | |
| RB-3M-10 | RB-3M-10 | RB-3M-10 | Round Bumper - 40 Dur Neoprene - 3/8-16 X 5/8 in | 1 | 111303 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Neoprene | |
| RB-3-40URM-10 | RB-3-40URM-10 | Round Bumper - 40 Dur Urethane - 3/8-16 X 5/8 in | 1 | 142014 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 5/8 | Urethane | ||
| RB-3-60URM-10 | RB-3-60URM-10 | Round Bumper - 60 Dur Urethane - 3/8-16 X 5/8 in | 1 | 142017 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-16 | 5/8 | Urethane | ||
| RB-3M-10-70 | RB-3M-10-70 | Round Bumper - 70 Dur Neoprene - 3/8-16 X 5/8 in | 1 | 142024 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 5/8 | Neoprene | ||
| RB-3URM-10 | RB-3M-10 | RB-3URM-10 | Round Bumper - 80 Dur Urethane - 3/8-16 X 5/8 in | 1 | 111326 | CAD | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 5/8 | Urethane | |
| RB-3-95URM-10 | RB-3-95URM-10 | Round Bumper - 95 Dur Urethane - 3/8-16 X 5/8 in | 1 | 142021 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 5/8 | Urethane | ||
| RB-3WM-16 | RB-3M-10 | RB-3WM-16 | Round Bumper - 40 Dur Nitrile - 3/8-16 X 1 in | 1 | 111361 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Nitrile | |
| RB-3M-16 | RB-3M-10 | RB-3M-16 | Round Bumper - 40 Dur Neoprene - 3/8-16 X 1 in | 1 | 111313 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Neoprene | |
| RB-3-40URM-16 | RB-3-40URM-16 | Round Bumper - 40 Dur Urethane - 3/8-16 X 1 in | 1 | 142015 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1 | Urethane | ||
| RB-3-60URM-16 | RB-3-60URM-16 | Round Bumper - 60 Dur Urethane - 3/8-16 X 1 in | 1 | 142018 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 3/8-16 | 1 | Urethane | ||
| RB-3M-16-70 | RB-3M-16-70 | Round Bumper - 70 Dur Neoprene - 3/8-16 X 1in | 1 | 142025 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 1 | Neoprene | ||
| RB-3URM-16 | RB-3M-10 | RB-3URM-16 | Round Bumper - 80 Dur Urethane - 3/8-16 X 1 in | 1 | 111328 | CAD | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 1 | Urethane | |
| RB-3-95URM-16 | RB-3-95URM-16 | Round Bumper - 95 Dur Urethane - 3/8-16 X 1 in | 1 | 142022 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 1 | Urethane | ||
| RB-3WM-20 | RB-3M-10 | RB-3WM-20 | Round Bumper - 40 Dur Nitrile - 3/8-16 X 1-1/4 in | 1 | 111367 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Nitrile | |
| RB-3M-20 | RB-3M-10 | RB-3M-20 | Round Bumper - 40 Dur Neoprene - 3/8-16 X 1-1/4 in | 1 | 111322 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Neoprene | |
| RB-3-40URM-20 | RB-3-40URM-20 | Round Bumper - 40 Dur Urethane - 3/8-16 X 1-1/4 in | 1 | 142016 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Urethane | ||
| RB-3-60URM-20 | RB-3-60URM-20 | Round Bumper - 60 Dur Urethane - 3/8-16 X 1-1/4 in | 1 | 142019 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 3/8-16 | 1-1/4 | Urethane | ||
| RB-3M-20-70 | RB-3M-20-70 | Round Bumper - 70 Dur Neoprene - 3/8-16 X 1-1/4in | 1 | 142026 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 3/8-16 | 1-1/4 | Neoprene | ||
| RB-3URM-20 | RB-3M-10 | RB-3URM-20 | Round Bumper - 80 Dur Urethane - 3/8-16 X 1-1/4 in | 1 | 111336 | CAD | 1-1/4 | 1-1/4 | 3/4 | 80 | 3/8-16 | 1-1/4 | Urethane | |
| RB-3-95URM-20 | RB-3-95URM-20 | Round Bumper - 95 Dur Urethane - 3/8-16 X 1-1/4 in | 1 | 142023 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 3/8-16 | 1-1/4 | Urethane | ||
| RB-5WM-13 | RB-5WM-13 | Round Bumper - 40 Dur Nitrile - 1/2-13 X 5/8 in | 1 | 141829 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Nitrile | ||
| RB-5M-13 | RB-5M-13 | Round Bumper - 40 Dur Neoprene - 1/2-13 X 5/8 in | 1 | 141823 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Neoprene | ||
| RB-5-40URM-13 | RB-5-40URM-13 | Round Bumper - 40 Dur Urethane - 1/2-13 X 5/8 in | 1 | 141813 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Urethane | ||
| RB-5-60URM-13 | RB-5-60URM-13 | Round Bumper - 60 Dur Urethane - 1/2-13 X 5/8 in | 1 | 141816 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 3/4 | Urethane | ||
| RB-5M-13-70 | RB-5M-13-70 | Round Bumper - 70 Dur Neoprene - 1/2-13 X 5/8 in | 1 | 141824 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 3/4 | Neoprene | ||
| RB-5-95URM-13 | RB-5-95URM-13 | Round Bumper - 95 Dur Urethane - 1/2-13 X 5/8 in | 1 | 141820 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 3/4 | Urethane | ||
| RB-5WM-16 | RB-5WM-16 | Round Bumper - 40 Dur Nitrile - 1/2-13 X 1 in | 1 | 141830 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Nitrile | ||
| RB-5M-16 | RB-5M-16 | Round Bumper - 40 Dur Neoprene - 1/2-13 X 1 in | 1 | 141825 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Neoprene | ||
| RB-5-40URM-16 | RB-5-40URM-16 | Round Bumper - 40 Dur Urethane - 1/2-13 X 1 in | 1 | 141814 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1 | Urethane | ||
| RB-5-60URM-16 | RB-5-60URM-16 | Round Bumper - 60 Dur Urethane - 1/2-13 X 1 in | 1 | 141817 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 1 | Urethane | ||
| RB-5M-16-70 | RB-5M-16-70 | Round Bumper - 70 Dur Neoprene - 1/2-13 X 1 in | 1 | 141826 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 1 | Neoprene | ||
| RB-5-95URM-16 | RB-5-95URM-16 | Round Bumper - 95 Dur Urethane - 1/2-13 X 1 in | 1 | 141821 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 1 | Urethane | ||
| RB-5WM-20 | RB-5WM-20 | Round Bumper - 40 Dur Nitrile - 1/2-13 X 1-1/4 in | 1 | 141831 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Nitrile | ||
| RB-5M-20 | RB-5M-20 | Round Bumper - 40 Dur Neoprene - 1/2-13 X 1-1/4 in | 1 | 141827 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Neoprene | ||
| RB-5-40URM-20 | RB-5-40URM-20 | Round Bumper - 40 Dur Urethane - 1/2-13 X 1/1-4 in | 1 | 141815 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 1-1/4 | Urethane | ||
| RB-5-60URM-20 | RB-5-60URM-20 | Round Bumper - 60 Dur Urethane - 1/2-13 X 1-1/4 in | 1 | 141818 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 1/2-13 | 1-1/4 | Urethane | ||
| RB-5M-20-70 | RB-5M-20-70 | Round Bumper - 70 Dur Neoprene - 1/2-13 X 1-1/4 in | 1 | 141828 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 1/2-13 | 1-1/4 | Neoprene | ||
| RB-5-95URM-20 | RB-5-95URM-20 | Round Bumper - 95 Dur Urethane - 1/2-13 X 1-1/4 in | 1 | 141822 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 1/2-13 | 1-1/4 | Urethane | ||
| RB-8WM-16 | RB-3M-10 | RB-8WM-16 | Round Bumper - 40 Dur Nitrile - 5/8-18 X 1 in | 1 | 110473 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Nitrile | |
| RB-8M-16 | RB-3M-10 | RB-8M-16 | Round Bumper - 40 Dur Neoprene - 5/8-18 X 1 in | 1 | 110457 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Neoprene | |
| RB-8-40URM-16 | RB-8-40URM-16 | Round Bumper - 40 Dur Urethane - 5/8-18 X 1 in | 1 | 141845 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Urethane | ||
| RB-8-60URM-16 | RB-8-60URM-16 | Round Bumper - 60 Dur Urethane - 5/8-18 X 1 in | 1 | 141927 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1 | Urethane | ||
| RB-8M-16-70 | RB-8M-16-70 | Round Bumper - 70 Dur Neoprene - 5/8-18 X 1 in | 1 | 141932 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1 | Neoprene | ||
| RB-8URM-16 | RB-3M-10 | RB-8URM-16 | Round Bumper - 80 Dur Urethane - 5/8-18 X 1 in | 1 | 110463 | CAD | 1-1/4 | 1-1/4 | 3/4 | 80 | 5/8-18 | 1 | Urethane | |
| RB-8-95URM-16 | RB-8-95URM-16 | Round Bumper - 95 Dur Urethane - 5/8-18 X 1 in | 1 | 141930 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1 | Urethane | ||
| RB-8WM-20 | RB-8WM-20 | Round Bumper - 40 Dur Nitrile - 5/8-18 X 1-1/4 in | 1 | 141935 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Nitrile | ||
| RB-8M-20 | RB-8M-20 | Round Bumper - 40 Dur Neoprene - 5/8-18 X 1-1/4 in | 1 | 141933 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Neoprene | ||
| RB-8-40URM-20 | RB-8-40URM-20 | Round Bumper - 40 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 141926 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-8-60URM-20 | RB-8-60URM-20 | Round Bumper - 60 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 141928 | CAD | 1-1/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-8M-20-70 | RB-8M-20-70 | Round Bumper - 70 Dur Neoprene - 5/8-18 X 1-1/4 in | 1 | 141934 | CAD | 1-1/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1-1/4 | Neoprene | ||
| RB-8-95URM-20 | RB-8-95URM-20 | Round Bumper - 95 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 141931 | CAD | 1-1/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-10WM-16 | RB-10WM-16 | Round Bumper - 40 Dur Nitrile - 5/8-18 X 1 in | 1 | 141988 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Nitrile | ||
| RB-10M-16 | RB-10M-16 | Round Bumper - 40 Dur Neoprene - 5/8-18 X 1 in | 1 | 142096 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Neoprene | ||
| RB-10-40URM-16 | RB-10-40URM-16 | Round Bumper - 40 Dur Urethane - 5/8-18 X 1 in | 1 | 142089 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1 | Urethane | ||
| RB-10-60URM-16 | RB-10-60URM-16 | Round Bumper - 60 Dur Urethane - 5/8-18 X 1 in | 1 | 142091 | CAD | 1-3/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1 | Urethane | ||
| RB-10M-16-70 | RB-10M-16-70 | Round Bumper - 70 Dur Neoprene - 5/8-18 X 1 in | 1 | 142097 | CAD | 1-3/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1 | Neoprene | ||
| RB-10-95URM-16 | RB-10-95URM-16 | Round Bumper - 95 Dur Urethane - 5/8-18 X 1 in | 1 | 142094 | CAD | 1-3/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1 | Urethane | ||
| RB-10WM-20 | RB-10WM-20 | Round Bumper - 40 Dur Nitrile - 5/8-18 X 1-1/4 in | 1 | 141989 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Nitrile | ||
| RB-10M-20 | RB-10M-20 | Round Bumper - 40 Dur Neoprene - 5/8-18 X 1-1/4 in | 1 | 142098 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Neoprene | ||
| RB-10-40URM-20 | RB-10-40URM-20 | Round Bumper - 40 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 142090 | CAD | 1-3/4 | 1-1/4 | 3/4 | 40 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-10-60URM-20 | RB-10-60URM-20 | Round Bumper - 60 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 142092 | CAD | 1-3/4 | 1-1/4 | 3/4 | 60 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-10M-20-70 | RB-10M-20-70 | Round Bumper - 70 Dur Neoprene - 5/8-18 X 1-1/4 in | 1 | 142099 | CAD | 1-3/4 | 1-1/4 | 3/4 | 70 | 5/8-18 | 1-1/4 | Neoprene | ||
| RB-10-95URM-20 | RB-10-95URM-20 | Round Bumper - 95 Dur Urethane - 5/8-18 X 1-1/4 in | 1 | 142095 | CAD | 1-3/4 | 1-1/4 | 3/4 | 95 | 5/8-18 | 1-1/4 | Urethane | ||
| RB-14WM-13 | RB-3M-10 | RB-14WM-13 | Round Bumper - 40 Dur Nitrile - 1/2-13 X 3/4 in | 1 | 111225 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Nitrile | |
| RB-14M-13 | RB-3M-10 | RB-14M-13 | Round Bumper - 40 Dur Neoprene - 1/2-13 X 3/4 in | 1 | 111213 | CAD | 1-1/4 | 1-1/4 | 3/4 | 40 | 1/2-13 | 3/4 | Neoprene | |
| RB-14URM-13 | RB-3M-10 | RB-14URM-13 | Round Bumper - 80 Dur Urethane - 1/2-13 X 3/4 in | 1 | 111217 | CAD | 1-1/4 | 1-1/4 | 3/4 | 80 | 1/2-13 | 3/4 | Urethane |
