Home > Rollers & Bumpers > Bumpers > Square & Rect. - Steel Plate

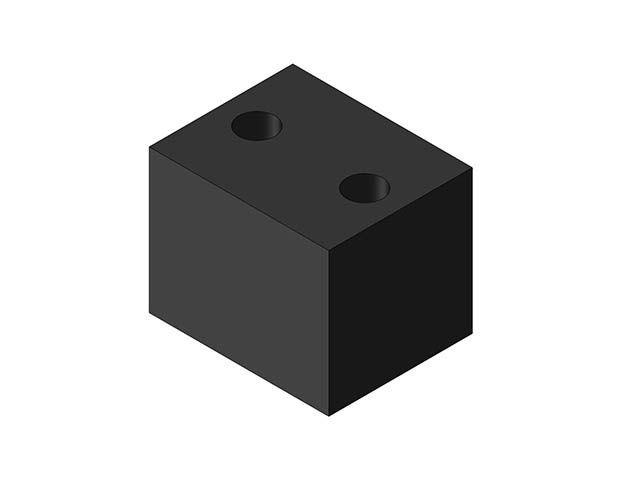

Rectangular Bumper w/ Steel Plate - 80 Dur Neoprene - 2-1/2 in X 2 in X 2 in

Part Number: RB-2025-C
Weight: 0 lbs 10 ozs
Length - Overall: 2-1/2
Material: Neoprene
Width - Overall: 2
Height - Overall: 2
Length - Edge to Mounting Hole Centers: 1-1/2
Length - between Mounting Hole Centers: 1
Width - Edge to Mounting Hole Centers: 1/2
For SHCS - Mounting (clearance): 5/16
Durometer: 80

Part:RB-2025-C

RB-2025-C

Download

Download CAD models here
