Bumpers - Rectangular - Steel Plate - C'Bore Mount (RB)

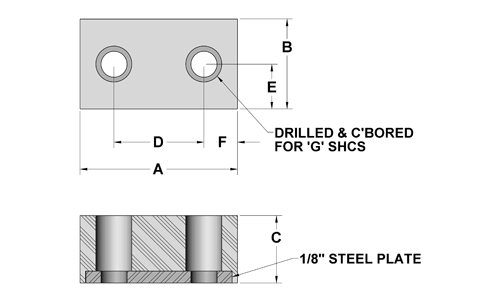

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel plate. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. The Urethane offers highest resistance, strength and load bearing. High elongation hardness. Resistant to ozone and oxygen.

Bumper Material Information

RB-1137-60UR

Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/8 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
RB-1137-60UR	RB-7525	RB-1137-60UR	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	111314	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1137-60URBLK		RB-1137-60URBLK	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	141992	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1137-UR	RB-7525	RB-1137-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	111333	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1137-URBLK		RB-1137-URBLK	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	141994	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1137-95UR		RB-1137-95UR	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	111318	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-1137-95URBLK		RB-1137-95URBLK	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 3/8 in	1	141993	CAD	1-3/4	1	3/8	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-1150-60UR	RB-7525	RB-1150-60UR	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	110379	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1150-60URBLK		RB-1150-60URBLK	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	141997	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1150-UR	RB-7525	RB-1150-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	110387	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1150-URBLK		RB-1150-URBLK	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	141999	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1150-95UR		RB-1150-95UR	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	110383	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-1150-95URBLK		RB-1150-95URBLK	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 1/2 in	1	141998	CAD	1-3/4	1	1/2	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-1175-35	RB-7525	RB-1175-35	Rectangular Bumper w/ Steel Plate - 35 Dur Neoprene - 1-3/4 in X 1 in X 3/4 in	1	110428	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	35	Neoprene
RB-1175-60UR	RB-7525	RB-1175-60UR	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	110438	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1175-60URBLK		RB-1175-60URBLK	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	142001	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	60	Urethane
RB-1175	RB-7525	RB-1175	Rectangular Bumper w/ Steel Plate - 80 Dur Neoprene - 1-3/4 in X 1 in X 3/4 in	1	110426	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	80	Neoprene
RB-1175-UR	RB-7525	RB-1175-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	110459	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1175-URBLK		RB-1175-URBLK	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	142002	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	80	Urethane
RB-1175-95UR		RB-1175-95UR	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	110441	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-1175-95URBLK		RB-1175-95URBLK	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 1-3/4 in X 1 in X 3/4 in	1	110447	CAD	1-3/4	1	3/4	1	1/2	3/8	1/4 (6mm)	95	Urethane
RB-2025-C-40		RB-2025-C-40	Rectangular Bumper w/ Steel Plate - 40 Dur Neoprene - 2-1/2 in X 2 in X 2 in	1	142009	CAD	2-1/2	2	2	1-1/2	1	1/2	5/16	40	Neoprene
RB-2025-C-40UR		RB-2025-C-40UR	Rectangular Bumper w/ Steel Plate - 40 Dur Urethane - 2-1/2 in X 2 in X 2 in	1	142010	CAD	2-1/2	2	2	1-1/2	1	1/2	5/16	40	Urethane
RB-2025-C-60UR		RB-2025-C-60UR	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 2-1/2 in X 2 in X 2 in	1	142011	CAD	2-1/2	2	2	1-1/2	1	1/2	5/16	60	Urethane
RB-2025	RB-7525	RB-2025	Rectangular Bumper w/ Steel Plate - 80 Dur Neoprene - 2-1/2 in X 2 in X 2 in	1	110472	CAD	2-1/2	2	2	1-1/2	-	1/2	-	80	Neoprene
RB-2025-UR	RB-7525	RB-2025-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 2 in X 2 in	1	110489	CAD	2-1/2	2	2	1-1/2	-	1/2	-	80	Urethane
RB-2025-C	RB-7525	RB-2025-C	Rectangular Bumper w/ Steel Plate - 80 Dur Neoprene - 2-1/2 in X 2 in X 2 in	1	110479	CAD	2-1/2	2	2	1-1/2	1	1/2	5/16	80	Neoprene
RB-2025-C-UR	RB-7525	RB-2025-C-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 2 in X 2 in	1	110486	CAD	2-1/2	2	2	1-1/2	1	1/2	5/16	80	Urethane
RB-7525-60UR	RB-7525	RB-7525-60UR	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	110511	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	60	Urethane
RB-7525-60URBLK		RB-7525-60URBLK	Rectangular Bumper w/ Steel Plate - 60 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	141836	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	60	Urethane
RB-7525-URBLK		RB-7525-URBLK	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	141838	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	80	Urethane
RB-7525-UR	RB-7525	RB-7525-UR	Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	110523	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	80	Urethane
RB-7525	RB-7525	RB-7525	Rectangular Bumper w/ Steel Plate - 80 Dur Neoprene - 2-1/2 in X 5/8 in X 5/8 in	1	110502	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	80	Neoprene
RB-7525-95UR		RB-7525-95UR	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	110514	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	95	Urethane
RB-7525-95URBLK		RB-7525-95URBLK	Rectangular Bumper w/ Steel Plate - 95 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in	1	141837	CAD	2-1/2	5/8	5/8	1-1/2	5/16	1/2	1/4 (6mm)	95	Urethane
RB-7575-60UR	RB-7575	RB-7575-60UR	Square Bumper w/ Steel Plate - 60 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	110540	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	60	Urethane
RB-7575-60URBLK		RB-7575-60URBLK	Square Bumper w/ Steel Plate - 60 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	141840	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	60	Urethane
RB-7575	RB-7575	RB-7575	Square Bumper w/ Steel Plate - 80 Dur Neoprene - 3/4 in X 3/4 in X 5/8 in	1	110530	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	80	Neoprene
RB-7575-UR	RB-7575	RB-7575-UR	Square Bumper w/ Steel Plate - 80 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	110550	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	80	Urethane
RB-7575-URBLK		RB-7575-URBLK	Square Bumper w/ Steel Plate - 80 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	141842	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	80	Urethane
RB-7575-95UR		RB-7575-95UR	Square Bumper w/ Steel Plate - 95 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	110545	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	95	Urethane
RB-7575-95URBLK		RB-7575-95URBLK	Square Bumper w/ Steel Plate - 95 Dur Urethane - 3/4 in X 3/4 in X 5/8 in	1	141841	CAD	3/4	3/4	5/8	-	3/8	3/8	1/4 (6mm)	95	Urethane
