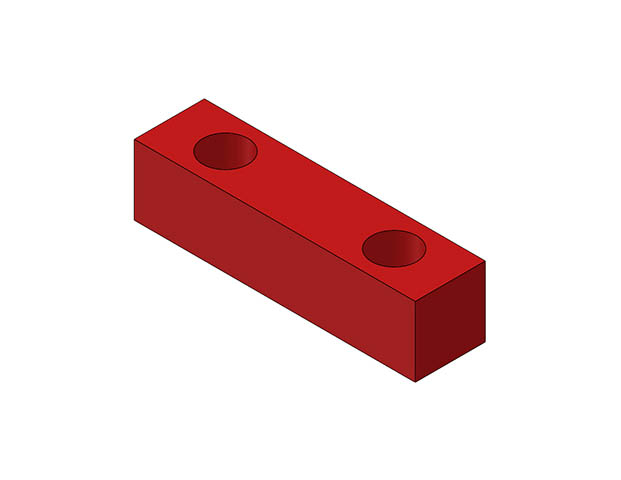

Rectangular Bumper w/ Steel Plate - 80 Dur Urethane - 2-1/2 in X 5/8 in X 5/8 in

Part Number: RB-7525-UR
Weight: 0 lbs 1 ozs
Length - Overall: 2-1/2
Material: Urethane
Width - Overall: 5/8
Height - Overall: 5/8
Length - Edge to Mounting Hole Centers: 1-1/2
Length - between Mounting Hole Centers: 5/16
Width - Edge to Mounting Hole Centers: 1/2
For SHCS - Mounting (clearance): 1/4 (6mm)
Durometer: 80

Part:RB-7525-UR

RB-7525-UR

Download

Download CAD models here
