Covered Bearing Mount Rollers - Single Bearings - Inch

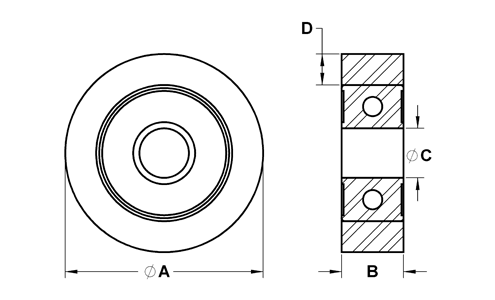

Drawing
Description
Media

Description

These covered bearings have a smooth urethane or neoprene surface that is cast directly to a precision sealed ball bearing. They provide smooth, quiet and non-marring operation. The urethane provides excellent abrasion resistance and durability. Neoprene provides flame and weather resistance.

Roller Material Information

CB-03123.15-35UR

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
CB-03123.15-35UR	CB-COMP	CB-03123.15-35UR	3/16 2RS 3/4 DIA x .2 WD	1	112743	CAD	.75	.196	.187	.12	R3-2RS	35	Urethane
CB-03123.15-60UR	CB-COMP	CB-03123.15-60UR	3/16 2RS 3/4 DIA x .2 WD	1	112747	CAD	.75	.196	.187	.12	R3-2RS	60	Urethane
CB-03123.15-95UR	CB-COMP	CB-03123.15-95UR	3/16 2RS 3/4 DIA x .2 WD	1	112751	CAD	.75	.196	.187	.12	R3-2RS	95	Urethane
CB-04143.15-35UR	CB-COMP	CB-04143.15-35UR	1/4 2RS 7/8 DIA x .2 WD	1	112759	CAD	.875	.196	.250	.12	R4-2RS	35	Urethane
CB-04143.15-60UR	CB-COMP	CB-04143.15-60UR	1/4 2RS 7/8 DIA x .2 WD	1	112762	CAD	.875	.196	.250	.12	R4-2RS	60	Urethane
CB-04143.15-95UR	CB-COMP	CB-04143.15-95UR	1/4 2RS 7/8 DIA x .2 WD	1	112767	CAD	.875	.196	.250	.12	R4-2RS	95	Urethane
CB-041605-35UR	CB-COMP	CB-041605-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.00 in Dia X .313 in Width - .250 in ID	1	112770	CAD	1.00	.313	.250	.15	1602-2RS	35	Urethane
CB-041605-60UR	CB-COMP	CB-041605-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.00 in Dia X .313 in Width - .250 in ID	1	112776	CAD	1.00	.313	.250	.15	1602-2RS	60	Urethane
CB-041605-95UR	CB-COMP	CB-041605-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.00 in Dia X .313 in Width - .250 in ID	1	112784	CAD	1.00	.313	.250	.15	1602-2RS	95	Urethane
CB-05185.5-60		CB-05185.5-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur -1.125 in Dia X .343 in Width - .312 in ID	1	136842	CAD	1.125	.343	.312	.12	1603-2RS	60	Neoprene
CB-05185.5-80		CB-05185.5-80	Neoprene Covered Bearing - Single Bearing Style -80 Dur -1.125 in Dia X .343 in Width - .312 in ID	1	136843	CAD	1.125	.343	.312	.12	1603-2RS	80	Neoprene
CB-05205.5-35UR	CB-COMP	CB-05205.5-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.25 in Dia X .343 in Width - .312 in ID	1	112796	CAD	1.25	.343	.312	.18	1603-2RS	35	Urethane
CB-05205.5-60UR	CB-COMP	CB-05205.5-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.25 in Dia X .343 in Width - .312 in ID	1	112805	CAD	1.25	.343	.312	.18	1603-2RS	60	Urethane
CB-05205.5-60		CB-05205.5-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 1.25 in Dia X .343 in Width - .312 in ID	1	136846	CAD	1.25	.343	.312	.18	1603-2RS	60	Neoprene
CB-05205.5-80		CB-05205.5-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 1.25 in Dia X .343 in Width - .312 in ID	1	136847	CAD	1.25	.343	.312	.18	1603-2RS	80	Neoprene
CB-05205.5-95UR	CB-COMP	CB-05205.5-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.25 in Dia X .343 in Width - .312 in ID	1	112810	CAD	1.25	.343	.312	.18	1603-2RS	95	Urethane
CB-05245.5-35UR	CB-COMP	CB-05245.5-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.50 in Dia X .343 in Width - .312 in ID	1	112817	CAD	1.50	.343	.312	.31	1603-2RS	35	Urethane
CB-05245.5-60UR	CB-COMP	CB-05245.5-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .343 in Width - .312 in ID	1	112820	CAD	1.50	.343	.312	.31	1603-2RS	60	Urethane
CB-05245.5-60		CB-05245.5-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .343 in Width - .312 in ID	1	136850	CAD	1.50	.343	.312	.31	1603-2RS	60	Neoprene
CB-05245.5-80		CB-05245.5-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 1.50 in Dia X .343 in Width - .312 in ID	1	136851	CAD	1.50	.343	.312	.31	1603-2RS	80	Neoprene
CB-05245.5-95UR	CB-COMP	CB-05245.5-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.50 in Dia X .343 in Width - .312 in ID	1	112824	CAD	1.50	.343	.312	.31	1603-2RS	95	Urethane
CB-0618.505-35UR	CB-COMP	CB-0618.505-35UR	3/8 2RS 1.16 DIA X 5/16 WD	1	112834	CAD	1.156	.312	.375	.12	1606-2RS	35	Urethane
CB-0618.505-60UR	CB-COMP	CB-0618.505-60UR	3/8 2RS 1.16 DIA X 5/16 WD	1	112838	CAD	1.156	.312	.375	.12	1606-2RS	60	Urethane
CB-0618.505-95UR	CB-COMP	CB-0618.505-95UR	3/8 2RS 1.16 DIA X 5/16 WD	1	112841	CAD	1.156	.312	.375	.12	1606-2RS	95	Urethane
CB-06205.5-35UR	CB-COMP	CB-06205.5-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.25 in Dia X .343 in Width - .375 in ID	1	112843	CAD	1.25	.343	.375	.18	1604-2RS	35	Urethane
CB-06205.5-60UR	CB-COMP	CB-06205.5-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.25 in Dia X .343 in Width - .375 in ID	1	112851	CAD	1.25	.343	.375	.18	1604-2RS	60	Urethane
CB-06205.5-95UR	CB-COMP	CB-06205.5-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.25 in Dia X .343 in Width - .375 in ID	1	112853	CAD	1.25	.343	.375	.18	1604-2RS	95	Urethane
CB-06245.5-35UR	CB-COMP	CB-06245.5-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.50 in Dia X .343 in Width - .375 in ID	1	112864	CAD	1.50	.343	.375	.31	1604-2RS	35	Urethane
CB-06245.5-60UR	CB-COMP	CB-06245.5-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .343 in Width - .375 in ID	1	112871	CAD	1.50	.343	.375	.31	1604-2RS	60	Urethane
CB-06245.5-95UR	CB-COMP	CB-06245.5-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.50 in Dia X .343 in Width - .375 in ID	1	112873	CAD	1.50	.343	.375	.31	1604-2RS	95	Urethane
CB-062408-85UR		CB-062408-85UR	Urethane Covered Bearing - Single Bearing Style - 85 Dur - 1.50 in Dia X .500 in Width - .375 in ID	1	136939	CAD	1.50	.500	.375	.18	1614-2RS	85	Urethane
CB-062408-60		CB-062408-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .500 in Width - .375 in ID	1	136826	CAD	1.50	.500	.375	.18	1614-2RS	60	Neoprene
CB-062408-80		CB-062408-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 1.50 in Dia X .500 in Width - .375 in ID	1	136827	CAD	1.50	.500	.375	.18	1614-2RS	80	Neoprene
CB-063208-85UR		CB-063208-85UR	Urethane Covered Bearing - Single Bearing Style - 85 Dur - 2.00 in Dia X .500 in Width - .375 in ID	1	136938	CAD	2.00	.500	.375	.18	1614-2RS	85	Urethane
CB-063208-60		CB-063208-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 2.00 in Dia X .500 in Width - .375 in ID	1	136830	CAD	2.00	.500	.375	.18	1614-2RS	60	Neoprene
CB-063208-80		CB-063208-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 2.00 in Dia X .500 in Width - .375 in ID	1	136831	CAD	2.00	.500	.375	.18	1614-2RS	80	Neoprene
CB-082406-35UR	CB-COMP	CB-082406-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.50 in Dia X .375 in Width - .500 in ID	1	112877	CAD	1.50	.375	.500	.18	1616-2RS	35	Urethane
CB-082406-60UR	CB-COMP	CB-082406-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .375 in Width - .500 in ID	1	112878	CAD	1.50	.375	.500	.18	1616-2RS	60	Urethane
CB-082406-60		CB-082406-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 1.50 in Dia X .375 in Width - .500 in ID	1	136866	CAD	1.50	.375	.500	.18	1616-2RS	60	Neoprene
CB-082406-80		CB-082406-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 1.50 in Dia X .375 in Width - .500 in ID	1	136867	CAD	1.50	.375	.500	.18	1616-2RS	80	Neoprene
CB-082406-95UR	CB-COMP	CB-082406-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.50 in Dia X .375 in Width - .500 in ID	1	112882	CAD	1.50	.375	.500	.18	1616-2RS	95	Urethane
CB-082806-35UR	CB-COMP	CB-082806-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 1.75 in Dia X .375 in Width - .500 in ID	1	112887	CAD	1.75	.375	.500	.31	1616-2RS	35	Urethane
CB-082806-60UR	CB-COMP	CB-082806-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 1.75 in Dia X .375 in Width - .500 in ID	1	112889	CAD	1.75	.375	.500	.31	1616-2RS	60	Urethane
CB-082806-95UR	CB-COMP	CB-082806-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.75 in Dia X .375 in Width - .500 in ID	1	112891	CAD	1.75	.375	.500	.31	1616-2RS	95	Urethane
CB-083206-35UR	CB-COMP	CB-083206-35UR	Urethane Covered Bearing - Single Bearing Style - 35 Dur - 2.00 in Dia X .375 in Width - .500 in ID	1	112893	CAD	2.00	.375	.500	.43	1616-2RS	35	Urethane
CB-083206-60UR	CB-COMP	CB-083206-60UR	Urethane Covered Bearing - Single Bearing Style - 60 Dur - 2.00 in Dia X .375 in Width - .500 in ID	1	112903	CAD	2.00	.375	.500	.43	1616-2RS	60	Urethane
CB-083206-95UR	CB-COMP	CB-083206-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 2.00 in Dia X .375 in Width - .500 in ID	1	112909	CAD	2.00	.375	.500	.43	1616-2RS	95	Urethane
CB-083208-60		CB-083208-60	Neoprene Covered Bearing - Single Bearing Style - 60 Dur - 2.00 in Dia X .500 in Width - .500 in ID	1	136838	CAD	2.00	.500	.500	.43	1616-2RS	60	Neoprene
CB-083208-80		CB-083208-80	Neoprene Covered Bearing - Single Bearing Style - 80 Dur - 2.00 in Dia X .500 in Width - .500 in ID	1	136839	CAD	2.00	.500	.500	.43	1616-2RS	80	Neoprene
CB-102807-95UR	CB-COMP	CB-102807-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 1.75 in Dia X .438 in Width - .625 in ID	1	112911	CAD	1.75	.438	.625	.18	1623-2RS	95	Urethane
CB-123208-95UR	CB-COMP	CB-123208-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 2.00 in Dia X .500 in Width - .750 in ID	1	112913	CAD	2.00	.500	.750	.18	1630-2RS	95	Urethane
CB-144009-95UR	CB-COMP	CB-144009-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 2.50 in Dia X .563 in Width - .875 in ID	1	112921	CAD	2.50	.563	.875	.25	1640-2RS	95	Urethane
CB-164809-95UR	CB-COMP	CB-164809-95UR	Urethane Covered Bearing - Single Bearing Style - 95 Dur - 3.00 in Dia X .563 in Width - 1.00 in ID	1	112931	CAD	3.00	.563	1.000	.50	1641-2RS	95	Urethane
