Bumpers - Round - Small - Steel Core - Tapped - Inch (RB)

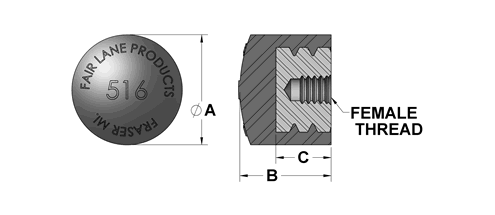

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen. Nitrile is chemical resistant and non-marring.

Bumper Material Information

RB-516-70W

Small Round Bumper - 70 Dur Nitrile - 5/16-18 X 1/4 in

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
RB-516-70W	RB-516-024	RB-516-70W	Small Round Bumper - 70 Dur Nitrile - 5/16-18 X 1/4 in	1	111136	CAD	3/4	5/8	3/8	70	5/16-18	1/4	Nitrile
RB-516-024-60UR		RB-516-024-60UR	Small Round Bumper - 60 Dur Urethane - 10-24 X 1/4 in	1	141807	CAD	3/4	5/8	3/8	60	#10-24	1/4	Urethane
RB-516-024	RB-516-024	RB-516-024	Small Round Bumper - 70 Dur Neoprene - 10-24 X 1/4 in	1	110986	CAD	3/4	5/8	3/8	70	#10-24	1/4	Neoprene
RB-516-024-70W		RB-516-024-70W	Small Round Bumper - 70 Dur Nitrile - 10-24 X 1/4 in	1	141802	CAD	3/4	5/8	3/8	70	#10-24	1/4	Nitrile
RB-516-024UR	RB-516-024	RB-516-024UR	Small Round Bumper - 80 Dur Urethane - 10-24 X 1/4 in	1	110994	CAD	3/4	5/8	3/8	80	#10-24	1/4	Urethane
RB-516-024-95UR		RB-516-024-95UR	Small Round Bumper - 95 Dur Urethane - 10-24 X 1/4 in	1	141847	CAD	3/4	5/8	3/8	95	#10-24	1/4	Urethane
RB-516-032-60UR		RB-516-032-60UR	Small Round Bumper - 60 Dur Urethane - 10-32 X 1/4 in	1	141852	CAD	3/4	5/8	3/8	60	#10-32	1/4	Urethane
RB-516-032	RB-516-024	RB-516-032	Small Round Bumper - 70 Dur Neoprene - 10-32 X 1/4 in	1	110999	CAD	3/4	5/8	3/8	70	#10-32	1/4	Neoprene
RB-516-032-70W		RB-516-032-70W	Small Round Bumper - 70 Dur Nitrile - 10-32 X 1/4 in	1	141857	CAD	3/4	5/8	3/8	70	#10-32	1/4	Nitrile
RB-516-032UR	RB-516-024	RB-516-032UR	Small Round Bumper - 80 Dur Urethane - 10-32 X 1/4 in	1	111015	CAD	3/4	5/8	3/8	80	#10-32	1/4	Urethane
RB-516-032-95UR		RB-516-032-95UR	Small Round Bumper - 95 Dur Urethane - 10-32 X 1/4 in	1	141862	CAD	3/4	5/8	3/8	95	#10-32	1/4	Urethane
RB-516-120-60UR		RB-516-120-60UR	Small Round Bumper - 60 Dur Urethane - 1/4-20 X 1/4 in	1	141867	CAD	3/4	5/8	3/8	60	1/4-20	1/4	Urethane
RB-516-120	RB-516-024	RB-516-120	Small Round Bumper - 70 Dur Neoprene - 1/4-20 X 1/4 in	1	111017	CAD	3/4	5/8	3/8	70	1/4-20	1/4	Neoprene
RB-516-120-70W		RB-516-120-70W	Small Round Bumper - 70 Dur Nitrile - 1/4-20 X 1/4 in	1	141872	CAD	3/4	5/8	3/8	70	1/4-20	1/4	Nitrile
RB-516-120UR	RB-516-024	RB-516-120UR	Small Round Bumper - 80 Dur Urethane - 1/4-20 X 1/4 in	1	111034	CAD	3/4	5/8	3/8	80	1/4-20	1/4	Urethane
RB-516-120-95UR		RB-516-120-95UR	Small Round Bumper - 95 Dur Urethane - 1/4-20 X 1/4 in	1	141877	CAD	3/4	5/8	3/8	95	1/4-20	1/4	Urethane
RB-516-128-60UR		RB-516-128-60UR	Small Round Bumper - 60 Dur Urethane - 1/4-28 X 1/4 in	1	141882	CAD	3/4	5/8	3/8	60	1/4-28	1/4	Urethane
RB-516-128	RB-516-024	RB-516-128	Small Round Bumper - 70 Dur Neoprene - 1/4-28 X 1/4 in	1	111044	CAD	3/4	5/8	3/8	70	1/4-28	1/4	Neoprene
RB-516-128-70W		RB-516-128-70W	Small Round Bumper - 70 Dur Nitrile - 1/4-28 X 1/4 in	1	141887	CAD	3/4	5/8	3/8	70	1/4-28	1/4	Nitrile
RB-516-128UR	RB-516-024	RB-516-128UR	Small Round Bumper - 80 Dur Urethane - 1/4-28 X 1/4 in	1	111060	CAD	3/4	5/8	3/8	80	1/4-28	1/4	Urethane
RB-516-128-95UR		RB-516-128-95UR	Small Round Bumper - 95 Dur Urethane - 1/4-28 X 1/4 in	1	141892	CAD	3/4	5/8	3/8	95	1/4-28	1/4	Urethane
RB-516-518-40		RB-516-518-40	Small Round Bumper - 40 Dur Neoprene - 5/16-18 X 1/4 in	1	111077	CAD	3/4	5/8	3/8	40	5/16-18	1/4	Neoprene
RB-516-45	RB-516-024	RB-516-45	Small Round Bumper - 45 Dur Neoprene - 5/16-18 X 1/4 in	1	111065	CAD	3/4	5/8	3/8	45	5/16-18	1/4	Neoprene
RB-516-60UR	RB-516-024	RB-516-60UR	Small Round Bumper - 60 Dur Urethane - 5/16-18 X 1/4 in	1	111127	CAD	3/4	5/8	3/8	60	5/16-18	1/4	Urethane
RB-516-518-60UR		RB-516-518-60UR	Small Round Bumper - 60 Dur Urethane - 5/16-18 X 1/4 in	1	141897	CAD	3/4	5/8	3/8	60	5/16-18	1/4	Urethane
RB-516-518	RB-516-024	RB-516-518	Small Round Bumper - 70 Dur Neoprene - 5/16-18 X 1/4 in	1	111075	CAD	3/4	5/8	3/8	70	5/16-18	1/4	Neoprene
RB-516-518-70W		RB-516-518-70W	Small Round Bumper - 70 Dur Nitrile - 5/16-18 X 1/4 in	1	141902	CAD	3/4	5/8	3/8	70	5/16-18	1/4	Nitrile
RB-516-518UR	RB-516-024	RB-516-518UR	Small Round Bumper - 80 Dur Urethane - 5/16-18 X 1/4 in	1	111085	CAD	3/4	5/8	3/8	80	5/16-18	1/4	Urethane
RB-516-518-95UR		RB-516-518-95UR	Small Round Bumper - 95 Dur Urethane - 5/16-18 X 1/4 in	1	141907	CAD	3/4	5/8	3/8	95	5/16-18	1/4	Urethane
RB-516-524-60UR		RB-516-524-60UR	Small Round Bumper - 60 Dur Urethane - 5/16-24 X 1/4 in	1	141912	CAD	3/4	5/8	3/8	60	5/16-18	1/4	Urethane
RB-516-524	RB-516-024	RB-516-524	Small Round Bumper - 70 Dur Neoprene - 5/16-24 X 1/4 in	1	111091	CAD	3/4	5/8	3/8	70	5/16-24	1/4	Neoprene
RB-516-524-70W		RB-516-524-70W	Small Round Bumper - 70 Dur Nitrile - 5/16-24 X 1/4 in	1	141917	CAD	3/4	5/8	3/8	70	5/16-18	1/4	Nitrile
RB-516-524UR	RB-516-024	RB-516-524UR	Small Round Bumper - 80 Dur Urethane - 5/16-24 X 1/4 in	1	111102	CAD	3/4	5/8	3/8	80	5/16-24	1/4	Urethane
RB-516-524-95UR		RB-516-524-95UR	Small Round Bumper - 95 Dur Urethane - 5/16-24 X 1/4 in	1	141922	CAD	3/4	5/8	3/8	95	5/16-18	1/4	Urethane
RB-516-524URBLK		RB-516-524URBLK	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - 5/16-24 X 11/16 in	1	111123	CAD
