Bumpers - Round - Steel Core - Male Thread - Metric (MRB)

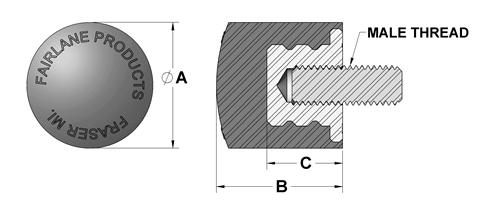

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness. Resistant to ozone and oxygen.

Bumper Material Information

MRB-3URX40

Round Bumper - 80 Dur Urethane - M10 x 1.50 x 40mm

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7
MRB-3URX40		MRB-3URX40	Round Bumper - 80 Dur Urethane - M10 x 1.50 x 40mm	1	129709	CAD	32	32	19.0	80	M10x1.5	40	Urethane	Red
MRB-3URX50		MRB-3URX50	Round Bumper - 80 Dur Urethane - M10 x 1.50 x 50mm	1	129711	CAD	32	32	19.0	80	M10x1.5	50	Urethane	Red
MRB-3X15-40UR		MRB-3X15-40UR	Round Bumper - 40 Dur Urethane - M10 x 1.50 x 15mm	1	141962	CAD	32	32	19.0	40	M10x1.5	15	Urethane	Black
MRB-3X15-60UR		MRB-3X15-60UR	Round Bumper - 60 Dur Urethane - M10 x 1.50 x 15mm	1	141963	CAD	32	32	19.0	60	M10x1.5	15	Urethane	Blue
MRB-3X15-70		MRB-3X15-70	Round Bumper - 70 Dur Neoprene - M10 x 1.50 x 15mm	1	141964	CAD	32	32	19.0	70	M10x1.5	15	Neoprene	Black
MRB-3X15-95UR		MRB-3X15-95UR	Round Bumper - 95 Dur Urethane - M10 x 1.50 x 15mm	1	141965	CAD	32	32	19.0	95	M10x1.5	15	Urethane	Black
MRB-3X30-40UR		MRB-3X30-40UR	Round Bumper - 40 Dur Urethane - M10 x 1.50 x 30mm	1	141966	CAD	32	32	19.0	40	M10x1.5	30	Urethane	Black
MRB-3X30-60UR		MRB-3X30-60UR	Round Bumper - 60 Dur Urethane - M10 x 1.50 x 30mm	1	141967	CAD	32	32	19.0	60	M10x1.5	30	Urethane	Blue
MRB-3X30-70		MRB-3X30-70	Round Bumper - 70 Dur Neoprene - M10 x 1.50 x 30mm	1	141968	CAD	32	32	19.0	70	M10x1.5	30	Neoprene	Black
MRB-3X30-95UR		MRB-3X30-95UR	Round Bumper - 95 Dur Urethane - M10 x 1.50 x 30mm	1	141969	CAD	32	32	19.0	95	M10x1.5	30	Urethane	Black
MRB-3X40		MRB-3X40	Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 40mm	1	129713	CAD	32	32	19.0	40	M10x1.5	40	Neoprene	Black
MRB-3X50		MRB-3X50	Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 50mm	1	129715	CAD	32	32	19.0	40	M10x1.5	50	Neoprene	Black
MRB-3URX15	MRB-3X15	MRB-3URX15	Round Bumper - 80 Dur Urethane - M10 x 1.50 x 15mm	1	110971	CAD	32	32	19.0	80	M10x1.5	15	Urethane	Red
MRB-3URX30	MRB-3X15	MRB-3URX30	Round Bumper - 80 Dur Urethane - M10 x 1.50 x 30mm	1	110978	CAD	32	32	19.0	80	M10x1.5	30	Urethane	Red
MRB-3X15	MRB-3X15	MRB-3X15	Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 15mm	1	110988	CAD	32	32	19.0	40	M10x1.5	15	Neoprene	Black
MRB-3X30	MRB-3X15	MRB-3X30	Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 30mm	1	111002	CAD	32	32	19.0	40	M10x1.5	30	Neoprene	Black
MRB-5URX15	MRB-3X15	MRB-5URX15	Round Bumper - 80 Dur Urethane - M12 x 1.75 x 15mm	1	111086	CAD	32	32	19.0	80	M12x1.75	15	Urethane	Red
MRB-5URX30	MRB-3X15	MRB-5URX30	Round Bumper - 80 Dur Urethane - M12 x 1.75 x 30mm	1	111094	CAD	32	32	19.0	80	M12x1.75	30	Urethane	Red
MRB-5X15	MRB-3X15	MRB-5X15	Round Bumper - 40 Dur Neoprene - M12 x 1.75 x 15mm	1	111097	CAD	32	32	19.0	40	M12x1.75	15	Neoprene	Black
MRB-5X30	MRB-3X15	MRB-5X30	Round Bumper - 40 Dur Neoprene - M12 x 1.75 x 30mm	1	111100	CAD	32	32	19.0	40	M12x1.75	30	Neoprene	Black
MRB-5X15-40UR		MRB-5X15-40UR	Round Bumper - 40 Dur Urethane - M12 x 1.75 x 15mm	1	142046	CAD	32	32	19.0	40	M12x1.75	15	Urethane	Black
MRB-5X15-60UR		MRB-5X15-60UR	Round Bumper - 60 Dur Urethane - M12 x 1.75 x 15mm	1	142047	CAD	32	32	19.0	60	M12x1.75	15	Urethane	Blue
MRB-5X15-70		MRB-5X15-70	Round Bumper - 70 Dur Neoprene - M12 x 1.75 x 15mm	1	142048	CAD	32	32	19.0	70	M12x1.75	15	Neoprene	Black
MRB-5X15-95UR		MRB-5X15-95UR	Round Bumper - 95 Dur Urethane - M12 x 1.75 x 15mm	1	142049	CAD	32	32	19.0	95	M12x1.75	15	Urethane	Black
MRB-5X30-40UR		MRB-5X30-40UR	Round Bumper - 40 Dur Urethane - M12 x 1.75 x 30mm	1	142050	CAD	32	32	19.0	40	M12x1.75	30	Urethane	Black
MRB-5X30-60UR		MRB-5X30-60UR	Round Bumper - 60 Dur Urethane - M12 x 1.75 x 30mm	1	142051	CAD	32	32	19.0	60	M12x1.75	30	Urethane	Blue
MRB-5X30-70		MRB-5X30-70	Round Bumper - 70 Dur Neoprene - M12 x 1.75 x 30mm	1	142052	CAD	32	32	19.0	70	M12x1.75	30	Neoprene	Black
MRB-5X30-95UR		MRB-5X30-95UR	Round Bumper - 95 Dur Urethane - M12 x 1.75 x 30mm	1	142053	CAD	32	32	19.0	95	M12x1.75	30	Urethane	Black
MRB-8X15-40UR		MRB-8X15-40UR	Round Bumper - 40 Dur Urethane - M16 x 2.0 x 15mm	1	142061	CAD	32	32	19.0	40	M16x2.0	15	Urethane	Black
MRB-8X15-60UR		MRB-8X15-60UR	Round Bumper - 60 Dur Urethane - M16 x 2.0 x 15mm	1	142062	CAD	32	32	19.0	60	M16x2.0	15	Urethane	Blue
MRB-8X15-70		MRB-8X15-70	Round Bumper - 70 Dur Neoprene - M16 x 2.0 x 15mm	1	142063	CAD	32	32	19.0	70	M16x2.0	15	Neoprene	Black
MRB-8X15-95UR		MRB-8X15-95UR	Round Bumper - 95 Dur Urethane - M16 x 2.0 x 15mm	1	142064	CAD	32	32	19.0	95	M16x2.0	15	Urethane	Black
MRB-8X30-40UR		MRB-8X30-40UR	Round Bumper - 40 Dur Urethane - M16 x 2.0 x 30mm	1	142065	CAD	32	32	19.0	40	M16x2.0	30	Urethane	Black
MRB-8X30-60UR		MRB-8X30-60UR	Round Bumper - 60 Dur Urethane - M16 x 2.0 x 30mm	1	142066	CAD	32	32	19.0	60	M16x2.0	30	Urethane	Blue
MRB-8X30-70		MRB-8X30-70	Round Bumper - 70 Dur Neoprene - M16 x 2.0 x 30mm	1	142067	CAD	32	32	19.0	70	M16x2.0	30	Neoprene	Black
MRB-8X30-95UR		MRB-8X30-95UR	Round Bumper - 95 Dur Urethane - M16 x 2.0 x 30mm	1	142068	CAD	32	32	19.0	95	M16x2.0	30	Urethane	Black
MRB-8URX15	MRB-3X15	MRB-8URX15	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 15mm	1	111104	CAD	32	32	19.0	80	M16x2.0	15	Urethane	Red
MRB-8URX30	MRB-3X15	MRB-8URX30	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 30mm	1	111106	CAD	32	32	19.0	80	M16x2.0	30	Urethane	Red
MRB-8X15	MRB-3X15	MRB-8X15	Round Bumper - 40 Dur Neoprene - M16 x 2.0 x 15mm	1	111108	CAD	32	32	19.0	40	M16x2.0	15	Neoprene	Black
MRB-8X30	MRB-3X15	MRB-8X30	Round Bumper - 40 Dur Neoprene - M16 x 2.0 x 30mm	1	111113	CAD	32	32	19.0	40	M16x2.0	30	Neoprene	Black
MRB-9URX15	MRB-3X15	MRB-9URX15	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 15mm	1	111118	CAD	45	42	22.5	80	M16x2.0	15	Urethane	Red
MRB-9URX30	MRB-3X15	MRB-9URX30	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 30mm	1	111120	CAD	45	42	22.5	80	M16x2.0	30	Urethane	Red
MRB-9X15	MRB-3X15	MRB-9X15	Round Bumper - 40 Dur Neoprene - M16 x 2.0 x 15mm	1	111166	CAD	45	42	22.5	40	M16x2.0	15	Neoprene	Black
MRB-9X30	MRB-3X15	MRB-9X30	Round Bumper - 40 Dur Neoprene - M16 x 2.0 x 30mm	1	111171	CAD	45	42	22.5	40	M16x2.0	30	Neoprene	Black
MRB-9URX50		MRB-9URX50	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 50mm	1	111148	CAD	45	42	22.5	80	M16x2.0	50	Urethane	Red
MRB-9URX65		MRB-9URX65	Round Bumper - 80 Dur Urethane - M16 x 2.0 x 65mm	1	111161	CAD	45	42	22.5	80	M16x2.0	65	Urethane	Red
MRB-9X15-40UR		MRB-9X15-40UR	Round Bumper - 40 Dur Urethane - M16 x 2.0 x 15mm	1	142073	CAD	45	42	22.5	40	M16x2.0	15	Urethane	Black
MRB-9X15-60UR		MRB-9X15-60UR	Round Bumper - 60 Dur Urethane - M16 x 2.0 x 15mm	1	142074	CAD	45	42	22.5	60	M16x2.0	15	Urethane	Blue
MRB-9X15-70		MRB-9X15-70	Round Bumper - 70 Dur Neoprene - M16 x 2.0 x 15mm	1	142075	CAD	45	42	22.5	70	M16x2.0	15	Neoprene	Black
MRB-9X15-95UR		MRB-9X15-95UR	Round Bumper - 95 Dur Urethane - M16 x 2.0 x 15mm	1	142076	CAD	45	42	22.5	95	M16x2.0	15	Urethane	Black
MRB-9X30-40UR		MRB-9X30-40UR	Round Bumper - 40 Dur Urethane - M16 x 2.0 x 30mm	1	142077	CAD	45	42	22.5	40	M16x2.0	40	Urethane	Black
MRB-9X30-60UR		MRB-9X30-60UR	Round Bumper - 60 Dur Urethane - M16 x 2.0 x 30mm	1	142078	CAD	45	42	22.5	60	M16x2.0	60	Urethane	Black
MRB-9X30-70		MRB-9X30-70	Round Bumper - 70 Dur Neoprene - M16 x 2.0 x 30mm	1	142079	CAD	45	42	22.5	70	M16x2.0	70	Neoprene	Black
MRB-9X30-95UR		MRB-9X30-95UR	Round Bumper - 95 Dur Urethane - M16 x 2.0 x 30mm	1	142080	CAD	45	42	22.5	95	M16x2.0	30	Urethane	Black
