DuraSoft® Bearing Mount Rollers - Precision Bearing - Inch

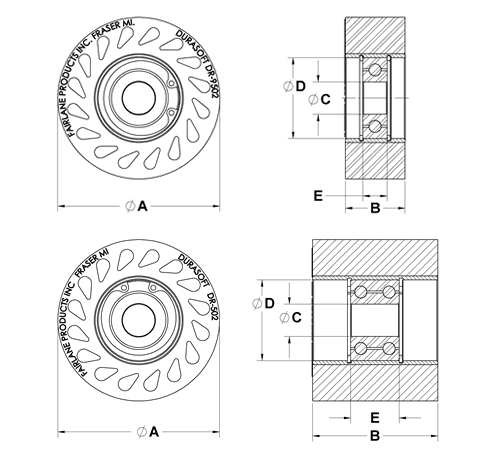

Drawing
Description
Media

Description

DuraSoft rollers have a smooth surface and are permanently bonded to a steel insert with the bearings held into place with snap rings. The "teardrop" holes allow the roller to flex for firm yet non-damaging contact. Rollers are made from urethane with hardness ranging from 35 to 95 durometer. Supplied with precision bearings.

Roller Material Information

DR-9502-35UR-BP

DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7	8
DR-9502-35UR-BP	DR-9502-35UR-CP	DR-9502-35UR-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113155	CAD	2.50	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	35
DR-9502-60UR-BP	DR-9502-35UR-CP	DR-9502-60UR-BP	DuraSoft® Roller - Precision Bearing Mount - 60 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113174	CAD	2.50	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	60
DR-9502-80UR-BP	DR-9502-35UR-CP	DR-9502-80UR-BP	DuraSoft® Roller - Precision Bearing Mount - 80 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113186	CAD	2.50	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	80
DR-9502-95UR-BP	DR-9502-35UR-CP	DR-9502-95UR-BP	DuraSoft® Roller - Precision Bearing Mount - 95 Dur Urethane - 2.50 in Dia X 0.92 in Wide	1	113209	CAD	2.50	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	95
DR-502-35UR-BP	DR-9502-35UR-CP	DR-502-35UR-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112846	CAD	2.50	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	35
DR-502-60UR-BP	DR-9502-35UR-CP	DR-502-60UR-BP	DuraSoft® Roller - Precision Bearing Mount - 60 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112867	CAD	2.50	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	60
DR-502-80UR-BP	DR-9502-35UR-CP	DR-502-80UR-BP	DuraSoft® Roller - Precision Bearing Mount - 80 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112905	CAD	2.50	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	80
DR-502-95UR-BP	DR-9502-35UR-CP	DR-502-95UR-BP	DuraSoft® Roller - Precision Bearing Mount - 95 Dur Urethane - 2.50 in Dia X 1.94 in Wide	1	112940	CAD	2.50	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	95
DR-9754-20-BP	DR-9754-20-CP	DR-9754-20-BP	DuraSoft® Roller - Precision Bearing Mount - 20 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113238	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Neoprene	20
DR-9754-35-BP	DR-9754-20-CP	DR-9754-35-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Neoprene - 4.00 in Dia X 0.92 in Wide	1	113268	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Neoprene	35
DR-9754-20W-BP	DR-9754-20-CP	DR-9754-20W-BP	DuraSoft® Roller - Precision Bearing Mount - 20 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113260	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Nitrile	20
DR-9754-35W-BP	DR-9754-20-CP	DR-9754-35W-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Nitrile - 4.00 in Dia X 0.92 in Wide	1	113314	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Nitrile	35
DR-9754-35UR-BP	DR-9754-20-CP	DR-9754-35UR-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113301	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	35
DR-9754-60UR-BP	DR-9754-20-CP	DR-9754-60UR-BP	DuraSoft® Roller - Precision Bearing Mount - 60 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113327	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	60
DR-9754-80UR-BP	DR-9754-20-CP	DR-9754-80UR-BP	DuraSoft® Roller - Precision Bearing Mount - 80 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113347	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	80
DR-9754-95UR-BP	DR-9754-20-CP	DR-9754-95UR-BP	DuraSoft® Roller - Precision Bearing Mount - 95 Dur Urethane - 4.00 in Dia X 0.92 in Wide	1	113386	CAD	4.00	.92	.4997/.5000	1.1247/1.1250	.3703/.3750	1	F	Urethane	95
DR-754-20-BP	DR-9754-20-CP	DR-754-20-BP	DuraSoft® Roller - Precision Bearing Mount - 20 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	112983	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Neoprene	20
DR-754-35-BP	DR-9754-20-CP	DR-754-35-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Neoprene - 4.00 in Dia X 1.94 in Wide	1	113012	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Neoprene	35
DR-754-20W-BP	DR-9754-20-CP	DR-754-20W-BP	DuraSoft® Roller - Precision Bearing Mount - 20 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	112993	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Nitrile	20
DR-754-35W-BP	DR-9754-20-CP	DR-754-35W-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Nitrile - 4.00 in Dia X 1.94 in Wide	1	113064	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Nitrile	35
DR-754-35UR-BP	DR-9754-20-CP	DR-754-35UR-BP	DuraSoft® Roller - Precision Bearing Mount - 35 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113019	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	35
DR-754-60UR-BP	DR-9754-20-CP	DR-754-60UR-BP	DuraSoft® Roller - Precision Bearing Mount - 60 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113080	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	60
DR-754-80UR-BP	DR-9754-20-CP	DR-754-80UR-BP	DuraSoft® Roller - Precision Bearing Mount - 80 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113113	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	80
DR-754-95UR-BP	DR-9754-20-CP	DR-754-95UR-BP	DuraSoft® Roller - Precision Bearing Mount - 95 Dur Urethane - 4.00 in Dia X 1.94 in Wide	1	113127	CAD	4.00	1.94	.4997/.5000	1.1247/1.1250	.7406/.7500	2	F	Urethane	95
