Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Inch (TBU)

Full Threaded Swivots® Gripper Assembly - Replaceable Pad Style - Inch (TBU)

Description

The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter.
More Information

TBU-0755

Threaded Design Swivot - 3/4-10 X 1 - Replaceable Pad

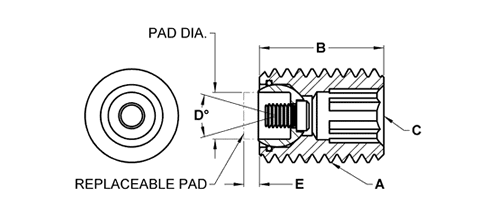

Technical Information

* E Stand Off 1 - Stand off when using a 3/8" height pad; E Stand Off 2 - Stand off when using a 1/2" height pad.
** Select any fixed gripper or rest pad with the proper diameter.
