Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBUH)

Hex Head Swivots® Gripper Assembly - Replaceable Pad Style - Metric (MBUH)

Description

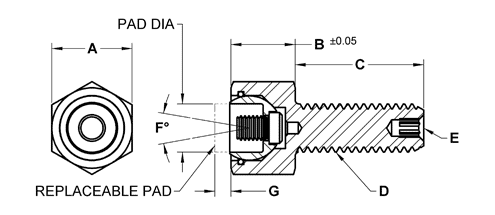

The replaceable pad swivels to allow for self-alignment on uneven surfaces. The replaceable pad fits in a hardened (Rc 58/60) 440c stainless ball cup and is held in place with a lock screw. The pad can be replaced when worn or a different style pad is required. The housing is made from alloy steel, heat treated to Rc 43/46 with black oxide finish. The parts below are for the Swivot assembly only and do not include a pad. Pads must be ordered separately by selecting any fixed gripper or rest pad with the proper diameter.

* G Stand Off 1 - Stand off when using a 10mm height pad; G Stand Off 2 - Stand off when using a 12mm height pad.
** Select any fixed gripper or rest pad with the proper diameter.

Select the following link for additional technical information.

MBUH-10015

Hex Design Swivot - M10 X 15 mm - Replaceable Pad
