Small - Steel Core

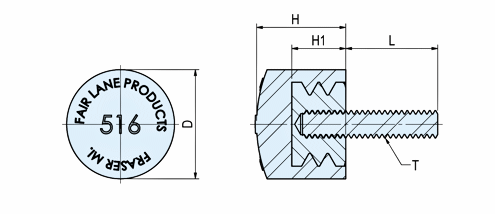

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness and is resistant to ozone and oxygen.

MRB-5166-40X15NH

Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M6X1.0 X 18 mm

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6
MRB-5166-40X15NH	MRB-5166X15NH	MRB-5166-40X15NH	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M6X1.0 X 18 mm	1	131693	CAD	M6x1.00	19	18	16	9	Neoprene	40
MRB-5166X15NH-40	MRB-5166X15NH	MRB-5166X15NH-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M6X1.0 X 18 mm	1	141979	CAD	M6x1.00	19	18	16	9	Neoprene	40
MRB-5166X15NH-60UR	MRB-5166X15NH	MRB-5166X15NH-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M6X1.0 X 18 mm	1	141980	CAD	M6x1.00	19	18	16	9	Urethane	60
MRB-5166X15NH-95UR	MRB-5166X15NH	MRB-5166X15NH-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M6X1.0 X 18 mm	1	141981	CAD	M6x1.00	19	18	16	9	Urethane	95
MRB-5166X30NH-40	MRB-5166X15NH	MRB-5166X30NH-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M6X1.0 X 33 mm	1	141985	CAD	M6x1.00	19	33	16	9	Neoprene	40
MRB-5166X30NH-60UR	MRB-5166X15NH	MRB-5166X30NH-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M6X1.0 X 33 mm	1	141986	CAD	M6x1.00	19	33	16	9	Urethane	60
MRB-5166X30NH-95UR	MRB-5166X15NH	MRB-5166X30NH-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M6X1.0 X 33 mm	1	141987	CAD	M6x1.00	19	33	16	9	Urethane	95
MRB-5168X15NH-40	MRB-5166X15NH	MRB-5168X15NH-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M8X1.25 X 19 mm	1	142033	CAD	M8x1.25	19	19	16	9	Neoprene	40
MRB-5168X15NH-60UR	MRB-5166X15NH	MRB-5168X15NH-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M8X1.25 X 19 mm	1	142034	CAD	M8x1.25	19	19	16	9	Urethane	60
MRB-5168X15NH-95UR	MRB-5166X15NH	MRB-5168X15NH-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M8X1.25 X 19 mm	1	142035	CAD	M8x1.25	19	19	16	9	Urethane	95
MRB-5168X30NH-40	MRB-5166X15NH	MRB-5168X30NH-40	Round Bumper - Flush Mount - Steel Core - 40 Dur Neoprene - M8X1.25 X 34 mm	1	142039	CAD	M8x1.25	19	34	16	9	Neoprene	40
MRB-5168X30NH-60UR	MRB-5166X15NH	MRB-5168X30NH-60UR	Round Bumper - Flush Mount - Steel Core - 60 Dur Urethane - M8X1.25 X 34 mm	1	142040	CAD	M8x1.25	19	34	16	9	Urethane	60
MRB-5168X30NH-95UR	MRB-5166X15NH	MRB-5168X30NH-95UR	Round Bumper - Flush Mount - Steel Core - 95 Dur Urethane - M8X1.25 X 34 mm	1	142041	CAD	M8x1.25	19	34	16	9	Urethane	95
MRB-5166X15NH	MRB-5166X15NH	MRB-5166X15NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - M6X1.0 X 18 MM	1	111036	CAD	M6X1.0	19	18	16	9	Neoprene	70
MRB-5166X30NH	MRB-5166X15NH	MRB-5166X30NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - M6X1.0 X 33 MM	1	129721	CAD	M6X1.0	19	33	16	9	Neoprene	70
MRB-5168X15NH	MRB-5166X15NH	MRB-5168X15NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - M8X1.25 X 19 MM	1	129723	CAD	M8X1.25	19	19	16	9	Neoprene	70
MRB-5168X30NH	MRB-5166X15NH	MRB-5168X30NH	Round Bumper - Flush Mount - Steel Core - 70 Dur Neoprene - M8X1.25 X 34 MM	1	129725	CAD	M8X1.25	19	34	16	9	Neoprene	70
MRB-5166URX15NH	MRB-5166X15NH	MRB-5166URX15NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - M6X1.0 X 18 MM	1	129717	CAD	M6X1.0	19	18	16	9	Urethane	80
MRB-5166URX30NH	MRB-5166X15NH	MRB-5166URX30NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - M6X1.0 X 33 MM	1	129719	CAD	M6X1.0	19	33	16	9	Urethane	80
MRB-5168URX15NH	MRB-5166X15NH	MRB-5168URX15NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - M8X1.25 X 18 MM	1	111058	CAD	M8X1.25	19	19	16	9	Urethane	80
MRB-5168URX30NH	MRB-5166X15NH	MRB-5168URX30NH	Round Bumper - Flush Mount - Steel Core - 80 Dur Urethane - M8X1.25 X 33 MM	1	111082	CAD	M8X1.25	19	34	16	9	Urethane	80
