Bumpers - Round - Large - Steel Core - Tapped - Metric (MRB)

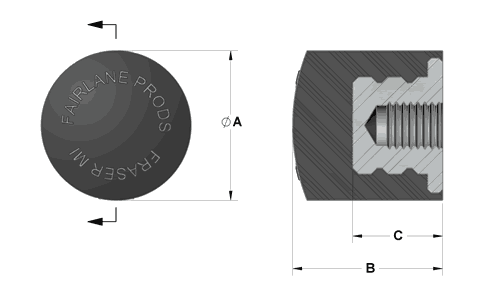

Drawing
Description
Media

Description

Used for stops, guides, bumpers and protection. Molded bumper bonded to steel core for durability. Neoprene offers good resistance against weather, gasoline, oil, ozone and high temperature. Urethane offers highest resistance, strength and load bearing. High elongation hardness. Resistant to ozone and oxygen.

Bumper Material Information

MRB-3

Large Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 13mm

Part Details
CAD

Part Number	Model Name	SKU	Description	Brand	Product ID	CAD Model Link	0	1	2	3	4	5	6	7
MRB-3	MRB-3	MRB-3	Large Round Bumper - 40 Dur Neoprene - M10 x 1.50 x 13mm	1	110515	CAD	32	32	19.0	40	M10x1.5	13	Neoprene	Black
MRB-3-40UR		MRB-3-40UR	Large Round Bumper - 40 Dur Urethane - M10 x 1.50 x 13mm	1	141958	CAD	32	32	19.0	40	M10x1.5	13	Urethane	Black
MRB-3-60UR		MRB-3-60UR	Large Round Bumper - 60 Dur Urethane - M10 x 1.50 x 13mm	1	141959	CAD	32	32	19.0	60	M10x1.5	13	Urethane	Blue
MRB-3-70		MRB-3-70	Large Round Bumper - 70 Dur Neoprene - M10 x 1.50 x 13mm	1	141960	CAD	32	32	19.0	70	M10x1.5	13	Neoprene	Black
MRB-3UR	MRB-3	MRB-3UR	Large Round Bumper - 80 Dur Urethane - M10 x 1.50 x 13mm	1	110520	CAD	32	32	19.0	80	M10x1.5	13	Urethane	Red
MRB-3-95UR		MRB-3-95UR	Large Round Bumper - 95 Dur Urethane - M10 x 1.50 x 13mm	1	141961	CAD	32	32	19.0	95	M10x1.5	13	Urethane	Orange
MRB-4	MRB-3	MRB-4	Large Round Bumper - 40 Dur Neoprene - M10 x 1.25 x 13mm	1	110524	CAD	32	32	19.0	40	M10x1.25	13	Neoprene	Black
MRB-4-40UR		MRB-4-40UR	Large Round Bumper - 40 Dur Urethane - M10 x 1.25 x 13mm	1	141970	CAD	32	32	19.0	40	M10x1.25	13	Urethane	Black
MRB-4-60UR		MRB-4-60UR	Large Round Bumper - 60 Dur Urethane - M10 x 1.25 x 13mm	1	141971	CAD	32	32	19.0	60	M10x1.25	13	Urethane	Blue
MRB-4-70		MRB-4-70	Large Round Bumper - 70 Dur Neoprene - M10 x 1.25 x 13mm	1	141972	CAD	32	32	19.0	70	M10x1.25	13	Neoprene	Black
MRB-4UR	MRB-3	MRB-4UR	Large Round Bumper - 80 Dur Urethane - M10 x 1.25 x 13mm	1	110536	CAD	32	32	19.0	80	M10x1.25	13	Urethane	Red
MRB-4-95UR		MRB-4-95UR	Large Round Bumper - 95 Dur Urethane - M10 x 1.25 x 13mm	1	141973	CAD	32	32	19.0	95	M10x1.25	13	Urethane	Orange
MRB-5	MRB-3	MRB-5	Large Round Bumper - 40 Dur Neoprene - M12 x 1.75 x 13mm	1	110549	CAD	32	32	19.0	40	M12x1.75	13	Neoprene	Black
MRB-5-40UR		MRB-5-40UR	Large Round Bumper - 40 Dur Urethane - M12 x 1.75 x 13mm	1	142042	CAD	32	32	19.0	40	M12x1.75	13	Urethane	Black
MRB-5-60UR		MRB-5-60UR	Large Round Bumper - 60 Dur Urethane - M12 x 1.75 x 13mm	1	142043	CAD	32	32	19.0	60	M12x1.75	13	Urethane	Blue
MRB-5-70		MRB-5-70	Large Round Bumper - 70 Dur Neoprene - M12 x 1.75 x 13mm	1	142044	CAD	32	32	19.0	70	M12x1.75	13	Neoprene	Black
MRB-5UR	MRB-3	MRB-5UR	Large Round Bumper - 80 Dur Urethane - M12 x 1.75 x 13mm	1	110597	CAD	32	32	19.0	80	M12x1.75	13	Urethane	Red
MRB-5-95UR		MRB-5-95UR	Large Round Bumper - 95 Dur Urethane - M12 x 1.75 x 13mm	1	142045	CAD	32	32	19.0	95	M12x1.75	13	Urethane	Orange
MRB-6	MRB-3	MRB-6	Large Round Bumper - 40 Dur Neoprene - M12 x 1.25 x 13mm	1	110610	CAD	32	32	19.0	40	M12x1.25	13	Neoprene	Black
MRB-6-40UR		MRB-6-40UR	Large Round Bumper - 40 Dur Urethane - M12 x 1.25 x 13mm	1	142054	CAD	32	32	19.0	40	M12x1.25	13	Urethane	Black
MRB-6-60UR		MRB-6-60UR	Large Round Bumper - 60 Dur Urethane - M12 x 1.25 x 13mm	1	110616	CAD	32	32	19.0	60	M12x1.25	13	Urethane	Blue
MRB-6-70		MRB-6-70	Large Round Bumper - 70 Dur Neoprene - M12 x 1.25 x 13mm	1	142055	CAD	32	32	19.0	70	M12x1.25	13	Neoprene	Black
MRB-6UR	MRB-3	MRB-6UR	Large Round Bumper - 80 Dur Urethane - M12 x 1.25 x 13mm	1	110623	CAD	32	32	19.0	80	M12x1.25	13	Urethane	Red
MRB-6-95UR		MRB-6-95UR	Large Round Bumper - 95 Dur Urethane - M12 x 1.25 x 13mm	1	142056	CAD	32	32	19.0	95	M12x1.25	13	Urethane	Orange
MRB-8	MRB-3	MRB-8	Large Round Bumper - 40 Dur Neoprene - M16 x 2.00 x 13mm	1	110634	CAD	32	32	19.0	40	M16x2.0	13	Neoprene	Black
MRB-8-40UR		MRB-8-40UR	Large Round Bumper - 40 Dur Urethane - M16 x 2.00 x 13mm	1	142057	CAD	32	32	19.0	40	M16x2.0	13	Urethane	Black
MRB-8-60UR		MRB-8-60UR	Large Round Bumper - 60 Dur Urethane - M16 x 2.00 x 13mm	1	142058	CAD	32	32	19.0	60	M16x2.0	13	Urethane	Blue
MRB-8-70		MRB-8-70	Large Round Bumper - 70 Dur Neoprene - M16 x 2.00 x 13mm	1	142059	CAD	32	32	19.0	70	M16x2.0	13	Neoprene	Black
MRB-8UR	MRB-3	MRB-8UR	Large Round Bumper - 80 Dur Urethane - M16 x 2.00 x 13mm	1	110643	CAD	32	32	19.0	80	M16x2.0	13	Urethane	Red
MRB-8-95UR		MRB-8-95UR	Large Round Bumper - 95 Dur Urethane - M16 x 2.00 x 13mm	1	142060	CAD	32	32	19.0	95	M16x2.0	13	Urethane	Orange
MRB-9	MRB-3	MRB-9	Large Round Bumper - 40 Dur Neoprene - M16 x 2.00 x 16mm	1	110652	CAD	45	42	22.5	40	M16x2.0	16	Neoprene	Black
MRB-9-40UR		MRB-9-40UR	Large Round Bumper - 40 Dur Urethane - M16 x 2.00 x 16mm	1	142069	CAD	45	42	22.5	40	M16x2.0	16	Urethane	Black
MRB-9-60UR		MRB-9-60UR	Large Round Bumper - 60 Dur Urethane - M16 x 2.00 x 16mm	1	142070	CAD	45	42	22.5	60	M16x2.0	16	Urethane	Blue
MRB-9-70		MRB-9-70	Large Round Bumper - 70 Dur Neoprene - M16 x 2.00 x 16mm	1	142071	CAD	45	42	22.5	70	M16x2.0	16	Neoprene	Black
MRB-9UR	MRB-3	MRB-9UR	Large Round Bumper - 80 Dur Urethane - M16 x 2.00 x 16mm	1	110653	CAD	45	42	22.5	80	M16x2.0	16	Urethane	Red
MRB-9-95UR		MRB-9-95UR	Large Round Bumper - 95 Dur Urethane - M16 x 2.00 x 16mm	1	142072	CAD	32	32	19.0	95	M16x2.0	16	Urethane	Orange
MRB-12	MRB-3	MRB-12	Large Round Bumper - 40 Dur Neoprene - M20 x 2.50 x 25mm	1	110488	CAD	57	57	35.0	40	M20x2.5	25	Neoprene	Black
MRB-12-40UR		MRB-12-40UR	Large Round Bumper - 40 Dur Urethane - M20 x 2.50 x 25mm	1	141950	CAD	57	57	35.0	40	M20x2.5	25	Urethane	Black
MRB-12-60UR		MRB-12-60UR	Large Round Bumper - 60 Dur Urethane - M20 x 2.50 x 25mm	1	141951	CAD	57	57	35.0	60	M20x2.5	25	Urethane	Blue
MRB-12-70		MRB-12-70	Large Round Bumper - 70 Dur Neoprene - M20 x 2.50 x 25mm	1	141952	CAD	57	57	35.0	70	M20x2.5	25	Neoprene	Black
MRB-12UR	MRB-3	MRB-12UR	Large Round Bumper - 80 Dur Urethane - M20 x 2.50 x 25mm	1	110492	CAD	57	57	35.0	80	M20x2.5	25	Urethane	Red
MRB-12-95UR		MRB-12-95UR	Large Round Bumper - 95 Dur Urethane - M20 x 2.50 x 25mm	1	141953	CAD	57	57	35.0	95	M20x2.5	25	Urethane	Orange
MRB-14	MRB-3	MRB-14	Large Round Bumper - 40 Dur Neoprene - M24 x 3.00 x 25mm	1	110500	CAD	57	57	35.0	40	M24x3.0	25	Neoprene	Black
MRB-14-40UR		MRB-14-40UR	Large Round Bumper - 40 Dur Urethane - M24 x 3.00 x 25mm	1	141954	CAD	57	57	35.0	40	M24x3.0	25	Urethane	Black
MRB-14-60UR		MRB-14-60UR	Large Round Bumper - 60 Dur Urethane - M24 x 3.00 x 25mm	1	141955	CAD	57	57	35.0	60	M24x3.0	25	Urethane	Blue
MRB-14-70		MRB-14-70	Large Round Bumper - 70 Dur Neoprene - M24 x 3.00 x 25mm	1	141956	CAD	57	57	35.0	70	M24x3.0	25	Neoprene	Black
MRB-14UR	MRB-3	MRB-14UR	Large Round Bumper - 80 Dur Urethane - M24 x 3.00 x 25mm	1	110505	CAD	57	57	35.0	80	M24x3.0	25	Urethane	Red
MRB-14-95UR		MRB-14-95UR	Large Round Bumper - 95 Dur Urethane - M24 x 3.00 x 25mm	1	141957	CAD	57	57	35.0	95	M24x3.0	25	Urethane	Orange
